Theoretical and experimental investigation of induction machines (1900)
Schulz, William Frederick, Marble, Harry Curtiss · leaf 24

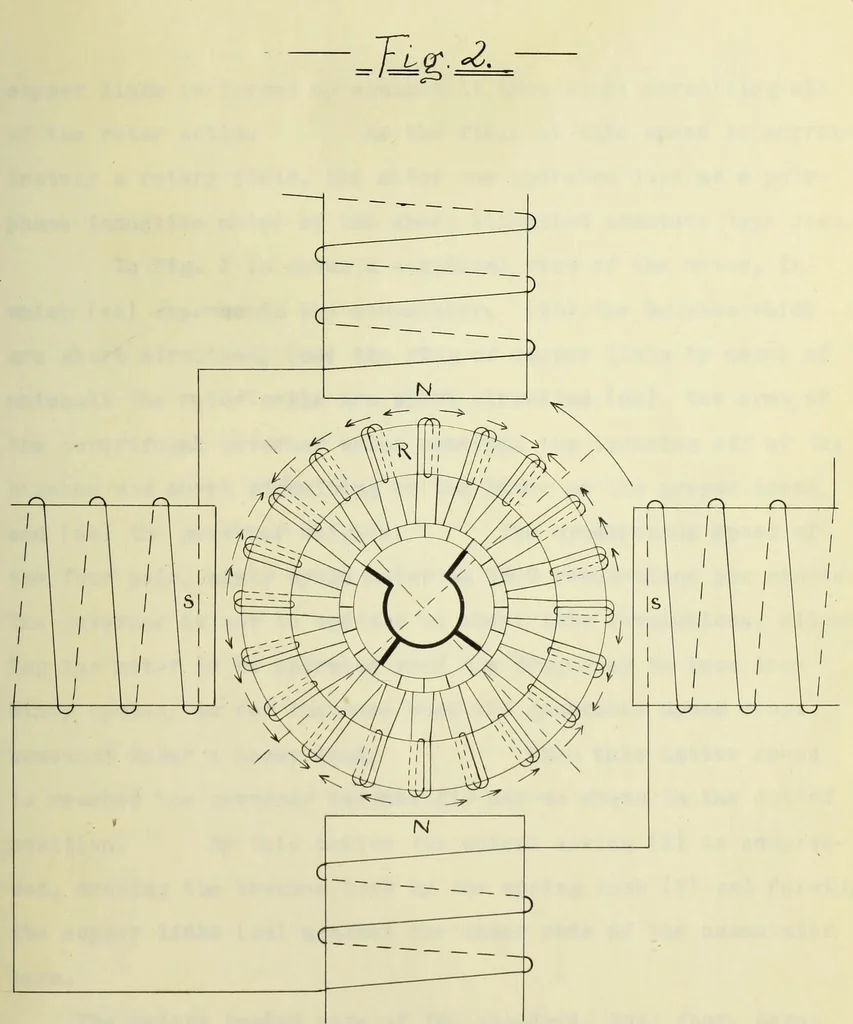

the smallarrov/s, and the rotor would remain at rest. If, however,the brushes are shifted from this midway position, the repulsivethrusts are unbalanced as shown in figure 2 (where the smallarrows at the clroumference of the rotor R show the directionof the repulsive thrust) and the rotor will tend…
Electric machinery, Induction · Theses
