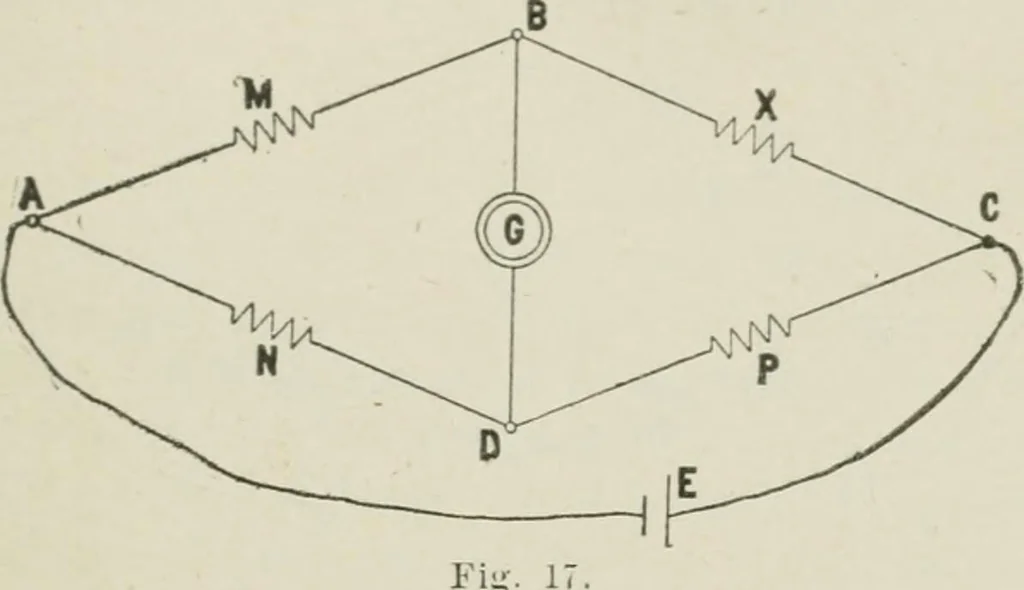

les of this instrument will he understood from Fig.17. Tlicrt- are four arms to the hridge witli Ihe resistances 3/, iV,X^ and P. i-iom the jH)ints of junction A and (, Avires comiectwith a hiittery E. A galvanometer Cr is connected hetween thejunction points B and T>. The current from the… … as through N and P. If no euvrent passes through the galvanom-eter then the points B and D will he at the same potential, andthere will he the same fall of potential in the resistances 3/and N^and in the resistances X and P. Under these circumstances theratio of the resistances of M to X will be…
