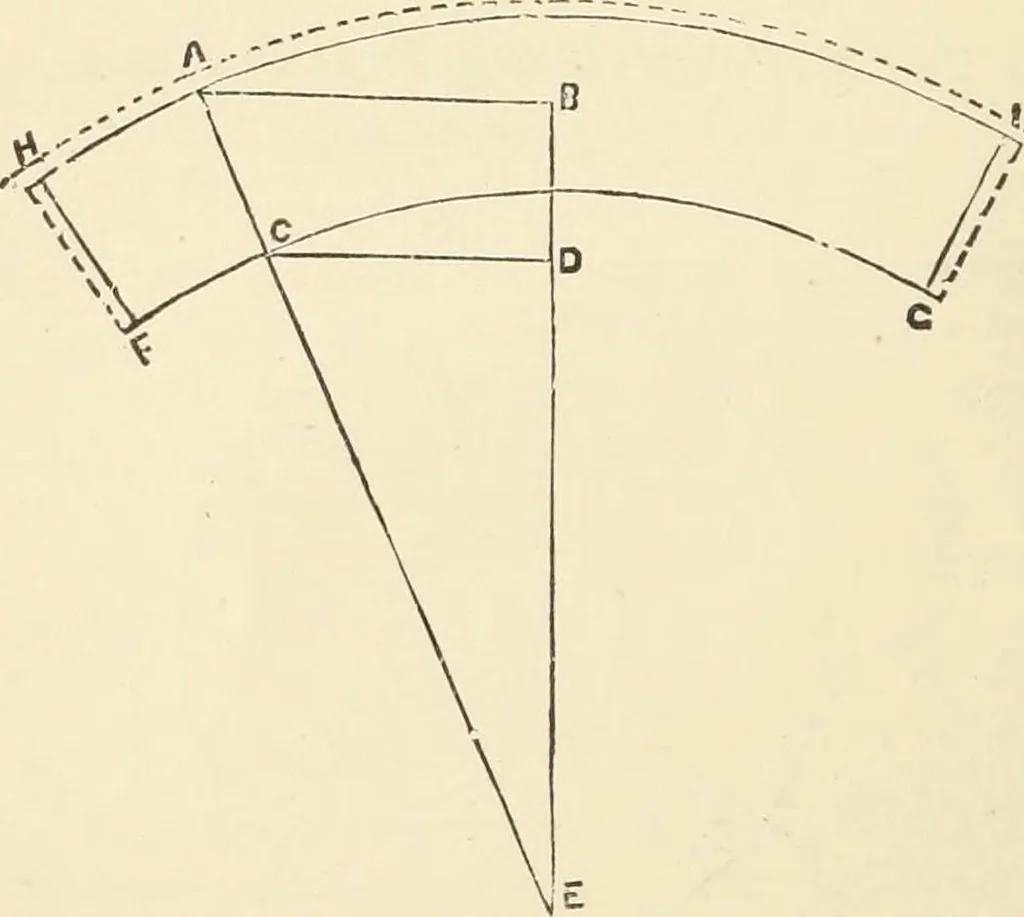

Let AB equal diameter of can, or base of a flange; CD di-ameter of opening in the top; FG altitude. Produce AC andUD until tbey meet at E; with E as centre, and the radii EDand EB, describe the curves IJ and HK; set off IJ equal to thecircumference of the base AB; draw the lines IE and JK,… … Describe the right angle ABE; make BD the altitude; drawthe line CD at right angle to BE; make AB equal one-half thediameter of the large end, CD one-half the diameter of the smallend; draw a line cutting the points A and C, and the line BEwith E as a centre and the radius EC and EA describe the…
