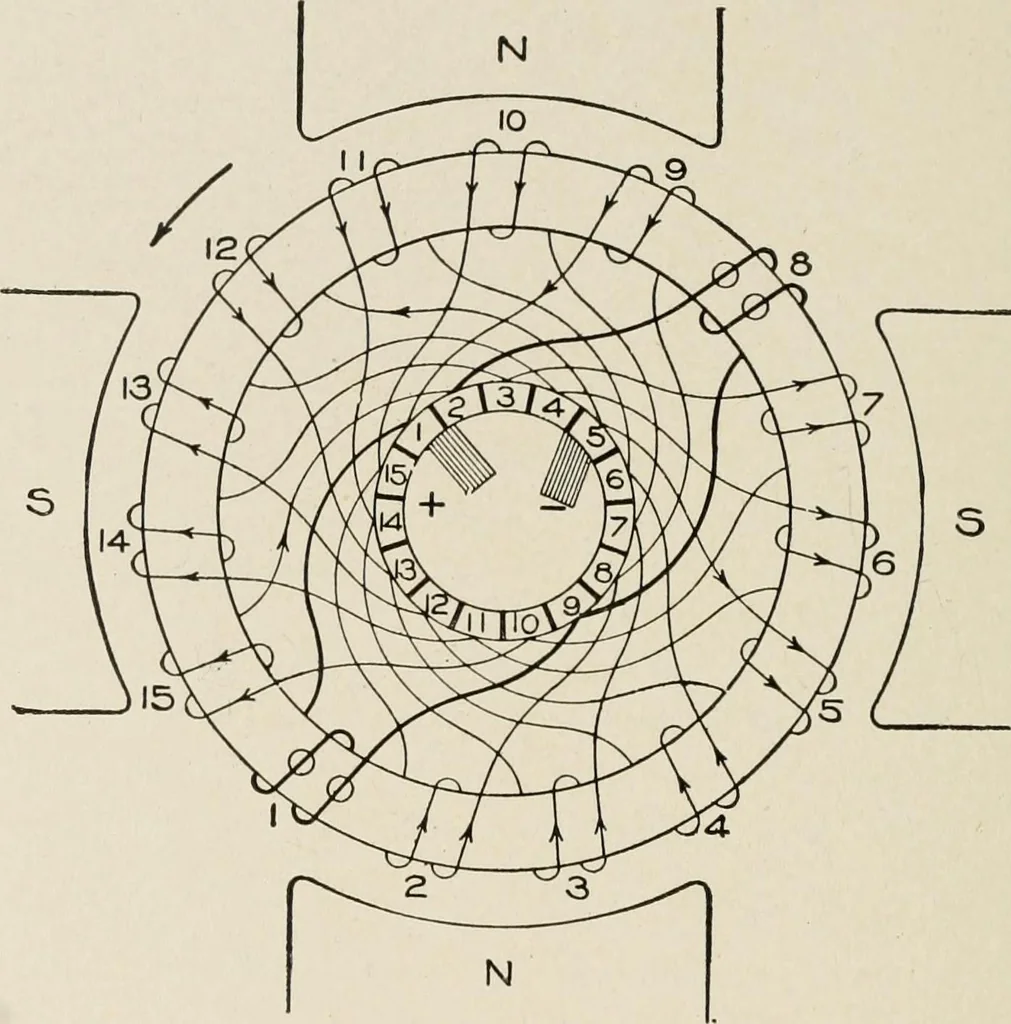

nding is, therefore, equivalent to several bipolar dynamosin parallel, just as the bipolar machine was shown to be equivalentto two sets of cells in parallel, Fig. 48, Part I. In the cases just con-sidered the winding and commutator pitches are both 1, or j/ = ?/^. = 1.In Fig. 113 is shown a… … N Fig. 113. Series-Connected Wave-Wound Ring Armatnie Poles. Armature andWinding. Commutator.Brushes. I E 3 4- 5 6 7 8 9 10 11 12 13 14 15
