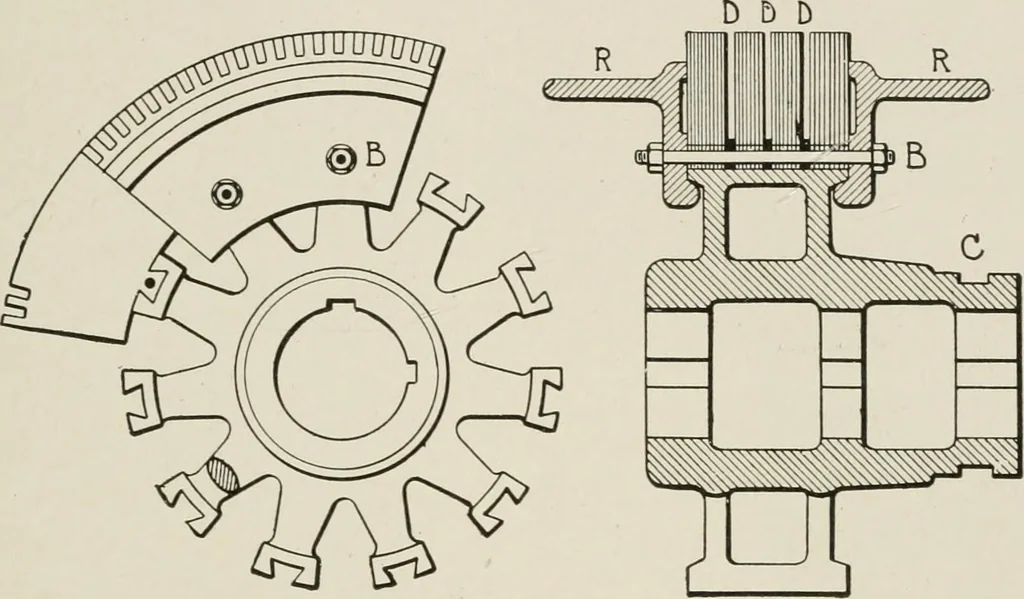

eson the spider arms, as in Fig. 199. The sectional view shows themethod of holding the lamina together by means of bolts and end-plates, also the extension R R for supporting the end-connectionsof a barrel-winding. 180 DESIGN 171 The hubs of armature spiders, in order to facilitate fitting… … Fig. 199. Mounting of Large Armature Core Figs. 201 and 202 show a spider and other features of construc-tion of a large machine. The rim is cut into six pieces, each of whichhas four dovetail notches. If cast in one piece, trouble might arisefrom unequal strains in themetal, due to contraction.…
