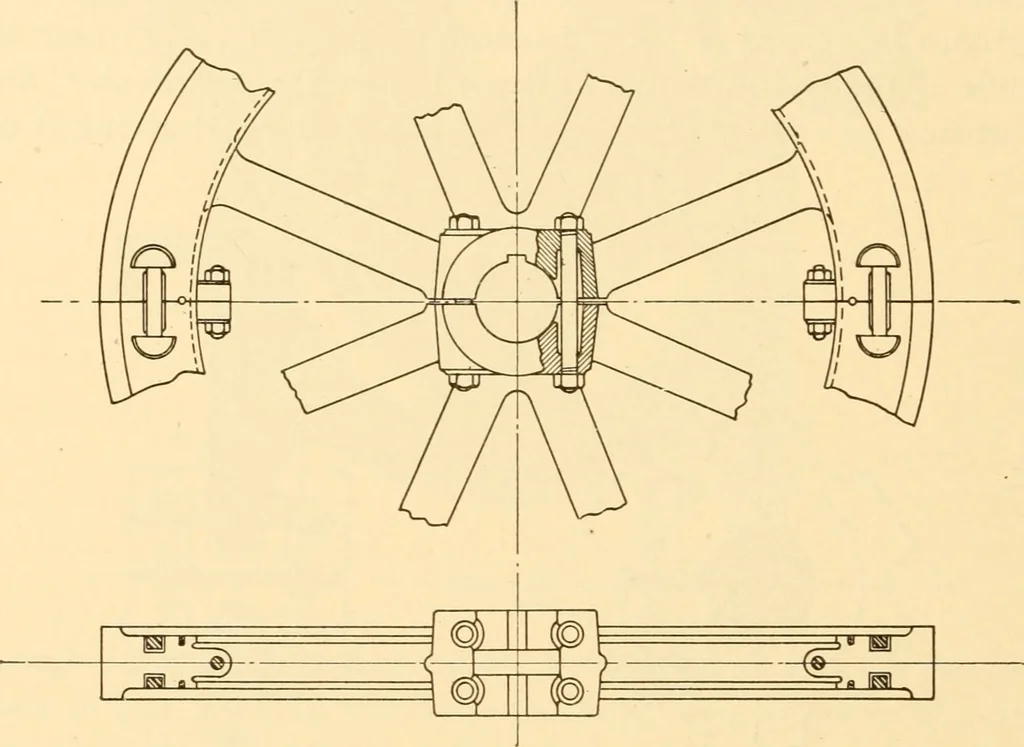

epended upon to hold thewheel, however, but merely to simplify putting the wheel on the 52 STEAM ENGINES shaft. The hub is held securely to the shaft by means of a closefitting key. Flywheels between 9 and 16 feet in diameter are commonlymade in halves, and larger sizes are divided into a greater… … Fig. 45. bolts extending all the way through on each side of the shaft, afterwhich the hub is keyed to the shaft. This type of wheel is usedonly as a flyw^heel and not as a belt w^heel, hence, the rim is madenarrow and deep in order to concentrate its weight as far from thecenter of the shaft as…
