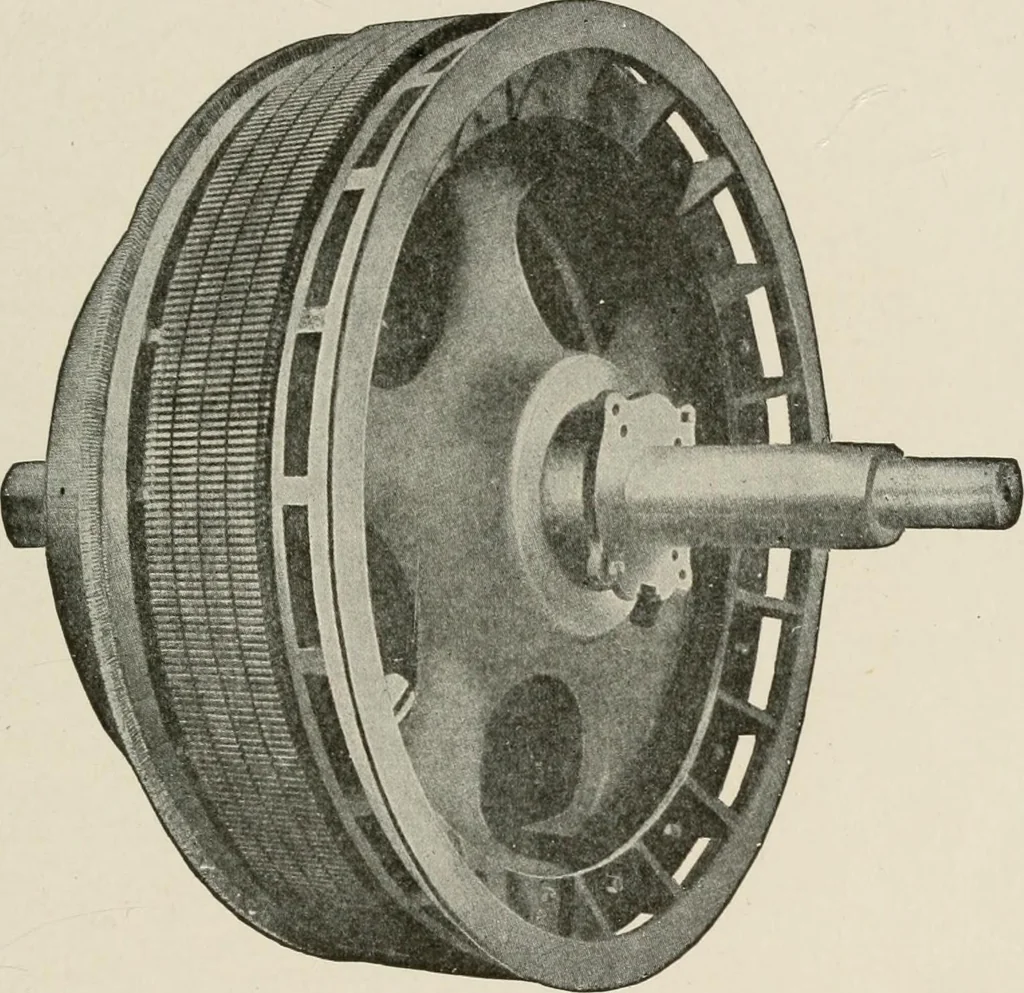

ore and teeth of the next plate. Binding Wires. With toothed-core armatures the conductorsmay be held in the slots by wedges of wood, as already mentioned, 182 DESIGN 173 or by bands of wire wound around the armature. These bindingwires must be strong enough to resist the centrifugal force tending… … Fig. 202. Armature Core and Commutator with Temporary Shaft practice is to employ a tinned wire of hard-drawn brass, phosphorbronze, or steel, which, after winding, can be sweated together bysolder into one continuous band. Under each belt of binding wire a band of insulation is laid,usually…
