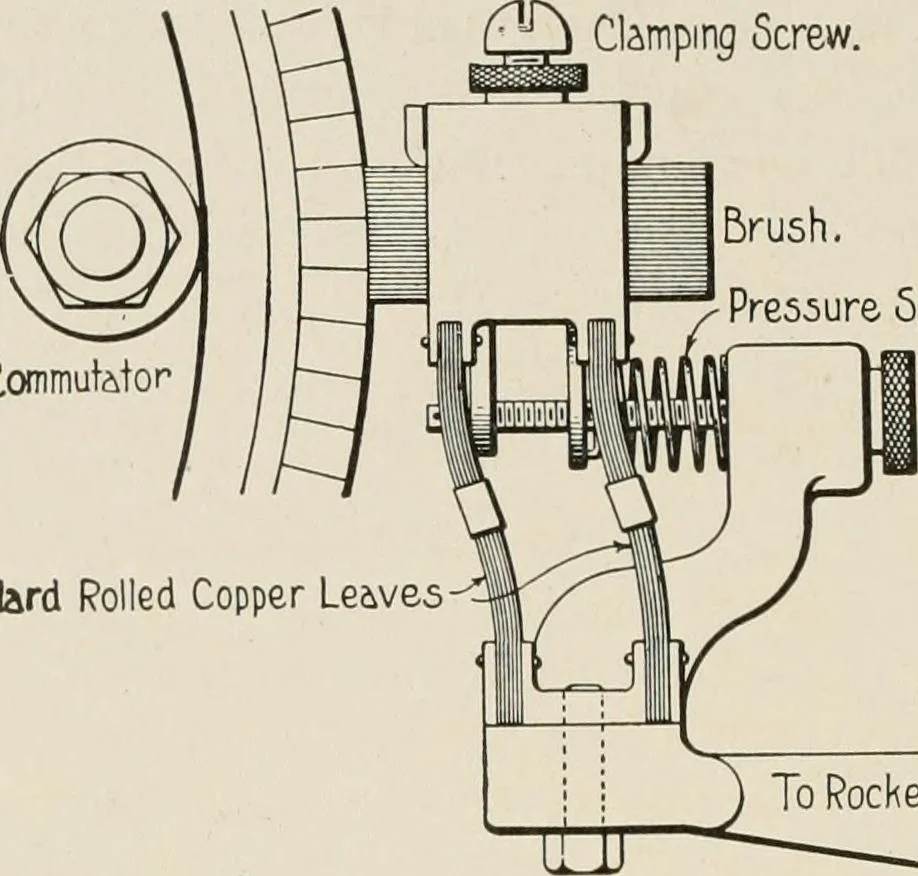

ckers and Rocker Arms. For small machines the rockeris usually clamped upon a shoulder turned upon the bearing pedestalas indicated in Fig. 239. For large multipolar generators, therocker arms, that is, the rods on which the brush-holders are held,are fixed at equidistant points around a cast-iron… … AdjustingvScrew. hard Rolled Copper Le&ves J To Rocker Ring i Fig. 239. Parallel-Movement Type of Brush-Holder
