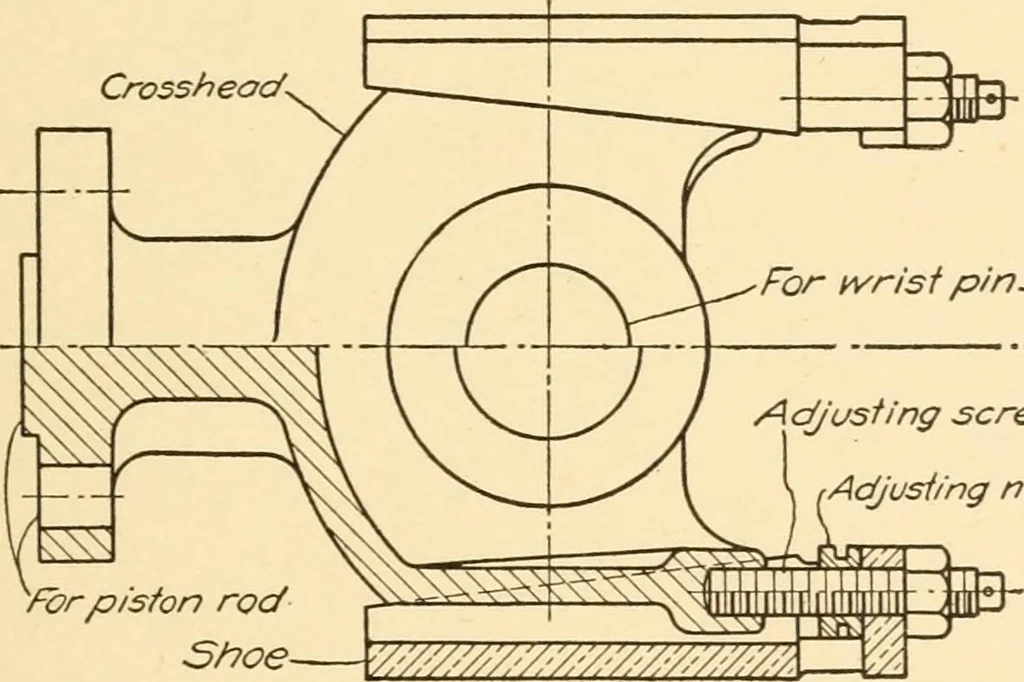

Fig. 141. Gas Engine Piston. 115. Crossheads are used on steam engines, pumps, air compressorsand many other machines. Two types of crossheads are shown inFigs. 142 and 143, with the names of the parts. The body of the cross- … ^ jt^ For piston rodShoe Adjusting scre^Adjusting nut Fig. 142. Crosshead.
