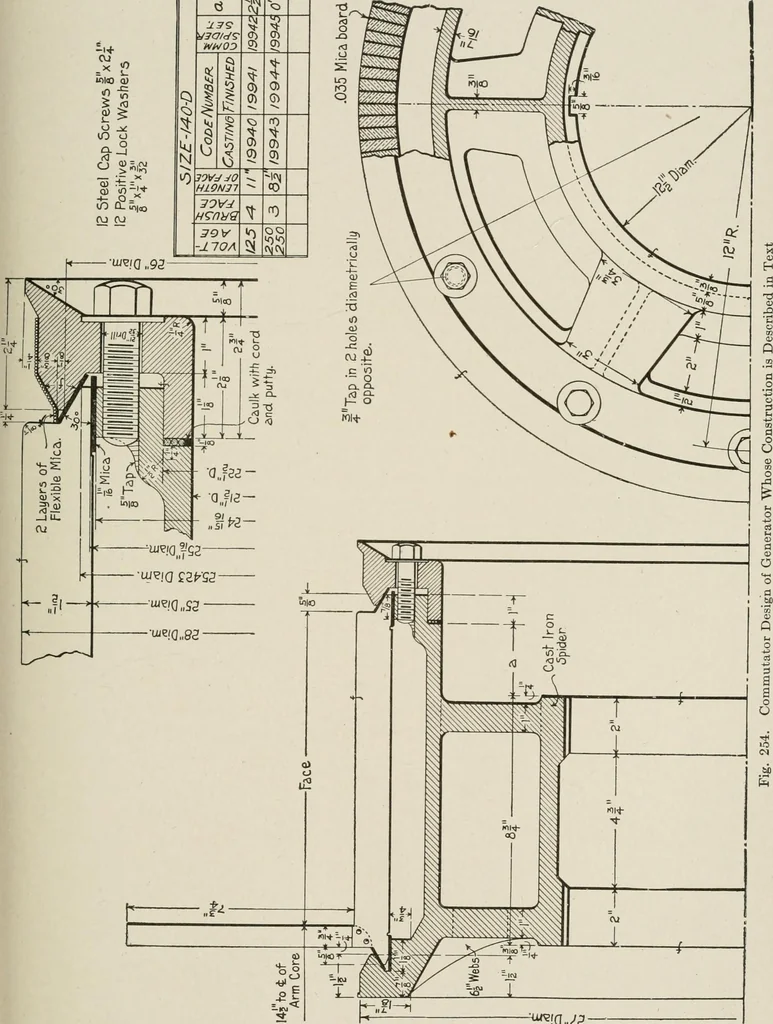

hat the commutator shall have about.464 segments, and as each segment plus the necessary insulationcannot be less than about 0.2 inch wide at the face of the armature,the periphery of the commutator must be at least 464 X 0.2 = 92.8inches long. That is, the diameter should be about 92.8 -i- rr =… … ^.a„Z3- 215 206 DIRECT-CURRENT DYNAMOS Allowing 40 amperes per square inch of brush contact, andassuming that a brush covers 3 segments, we have for the net lengthof the commutator, parallel to the shaft, I - ^5 =625in ^-3X0.2X40 ^•^* each brush set collecting 150 amperes, as there are 4 pairs of…
