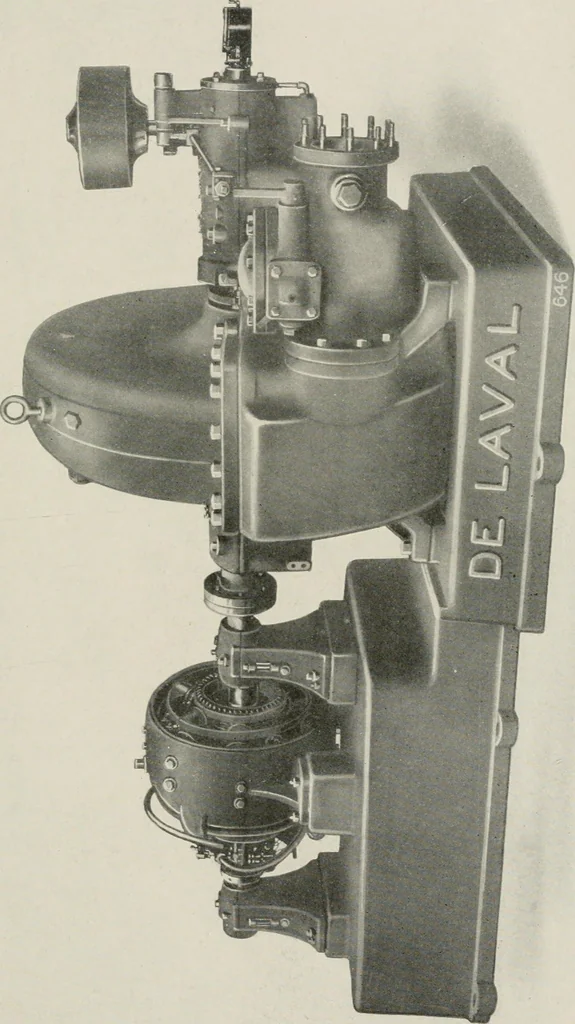

y 24 mils of press-board—twothicknesses, and a wrapping for four conductors of manila 25 milsthick—each conductor must be 80 mils wide, which leaves a clearanceof 2 mils. The depth of conductor will be 0.028 -^ 0.080 = 0.35inch, or 350 mils. Allow, say 12 mils of press-board between theupper and… … a s Q I P H DESIGN 209 the bottom of the slot. We may then account for the contents of a slot as follows: Width 4 Conductors side by side, bare 4 X 0.080 = 0.320 inch 8 Thicknesses of taping 8 X 0.030 = 0.240 inch 2 Thicknesses of slot hning 2 X 0.024 = 0.048 inch 2 Thicknesses of manila 2 X 0.025…
