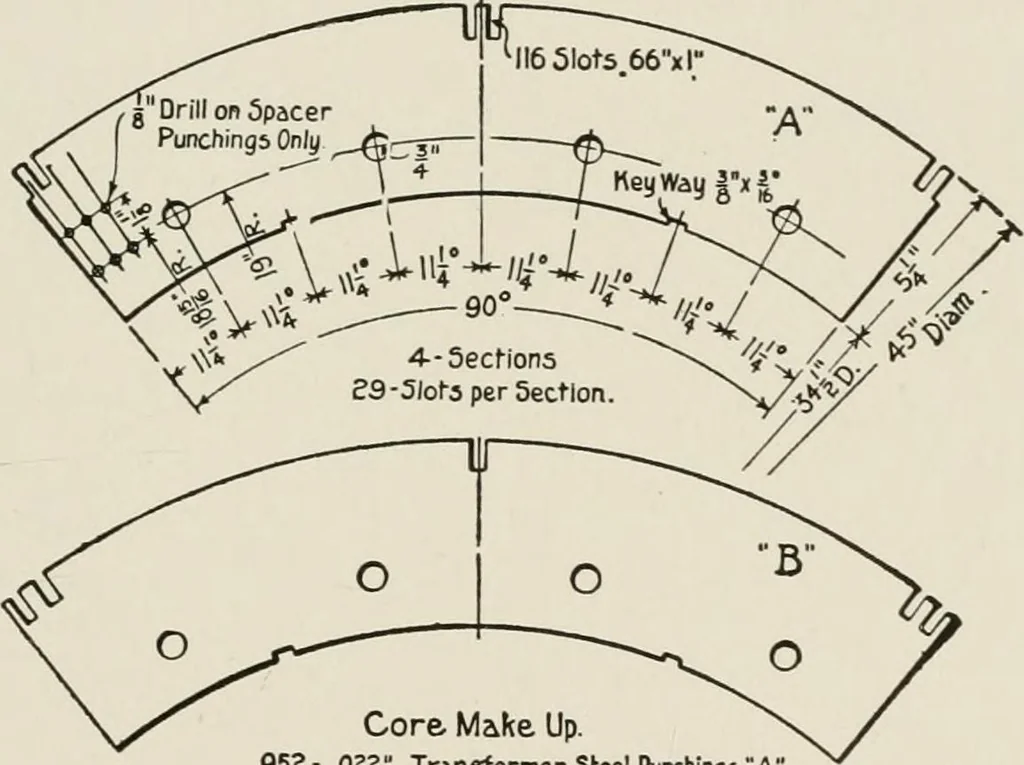

the slot. We may then account for the contents of a slot as follows: Width 4 Conductors side by side, bare 4 X 0.080 = 0.320 inch 8 Thicknesses of taping 8 X 0.030 = 0.240 inch 2 Thicknesses of slot hning 2 X 0.024 = 0.048 inch 2 Thicknesses of manila 2 X 0.025 = 0.050 inch Total 0.558 inch Depth 2… … 952 - .022 Transformer 5^eel Punchings A952-.022 Transformer SteelPutTchinss B500-.003 Paper Punchings. 16-. eV Transformer 5feel Punchingj A* 12 -. 0 2 2 Transformer 5feel 5picer Punchings A*348- 10076 Ventilators.696 - 28I6T Studs. Fig. 255. Lamination Stamping of Armature Whose Construction is…
