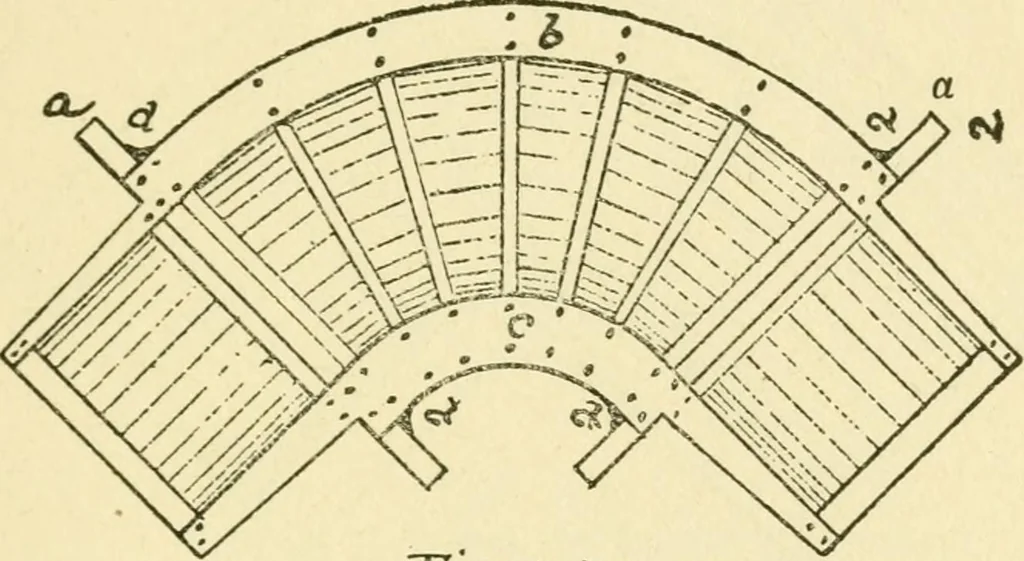

Tt^ 93 €for€ hox fot* STixalJ ^izeS elhaW AND FOUNDRY PRACTICE 131 this elbow is 4 feet in diameter, then wehave an entirely different proposition to con-sider, and instead of a piece of lathe work we … have a problem in construction which should be solved in the following manner: Get out the two circular flanges, a a. Fig. 94, which should each be in two halves and doweled together. Next, get out the pieces b and c, and let them into a suitable gain, which is cut into the straight side of these…
