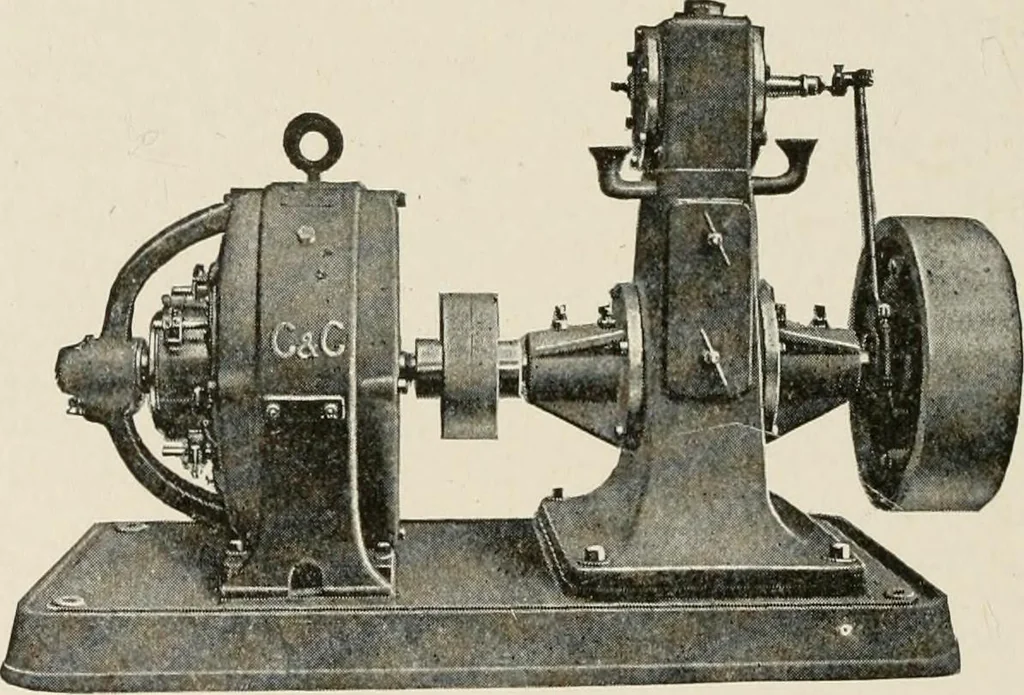

mpany. Engine Types. The line of enginetype generators built by this company is in sizes from 200 to 1500kw. rated at 125 or 250 volts, running at various speeds from 200 to80 r. p. m., and having from 10 to 16 poles. For direct connectionthey also build a second line of 6- and 8-pole machines in… … Fig. 28. C & C Type SL Generator Direct-Connected to High Speed Engine smaller line, while in the larger it is stiffened by internally pro-jecting flanges. The frame is split horizontally, the two halves beingaccurately aligned by dowel pins and bolted together. The lowerhalf of the frame is…
