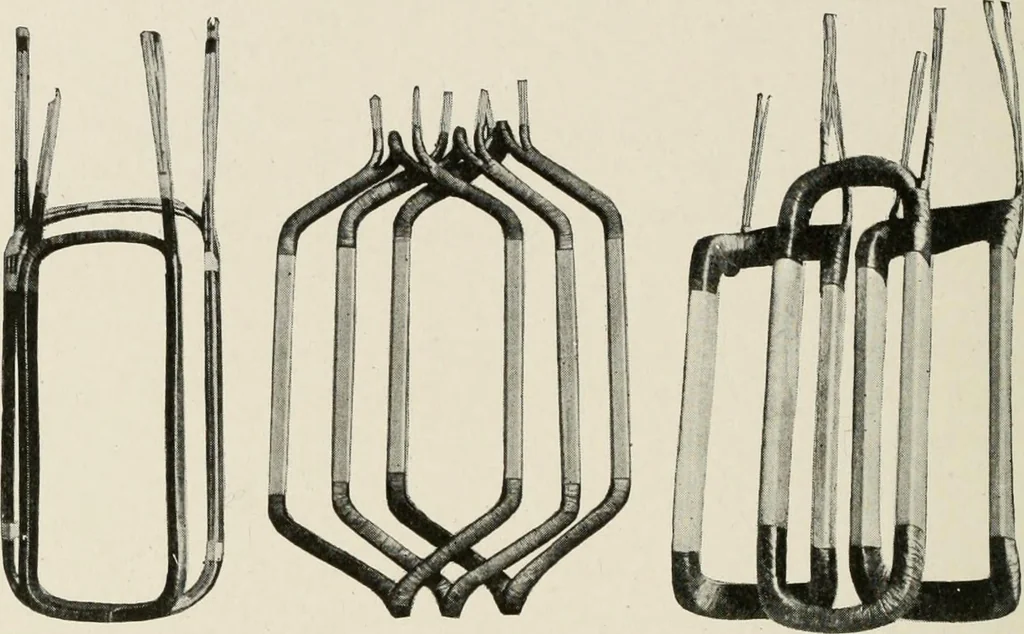

therebykeeping down the temperature. The form-wound armature coilsare interchangeable, each coil or winding unit being completelyinsulated before being put in place. No insulating material is placedin the slots, the insulation being preferred integral with the coil. 345 100 TYPES OF GENERATORS AND… … Fig. 124. Form-Wound Interchangeable Armature Coils of the coils where they project beyond the slots are heavily tapedand, when necessary to withstand the stresses due to short circuits,suitable supports are provided. The details of the coils and wind-ings are shown in Figs. 124, 125, and 126. In…
