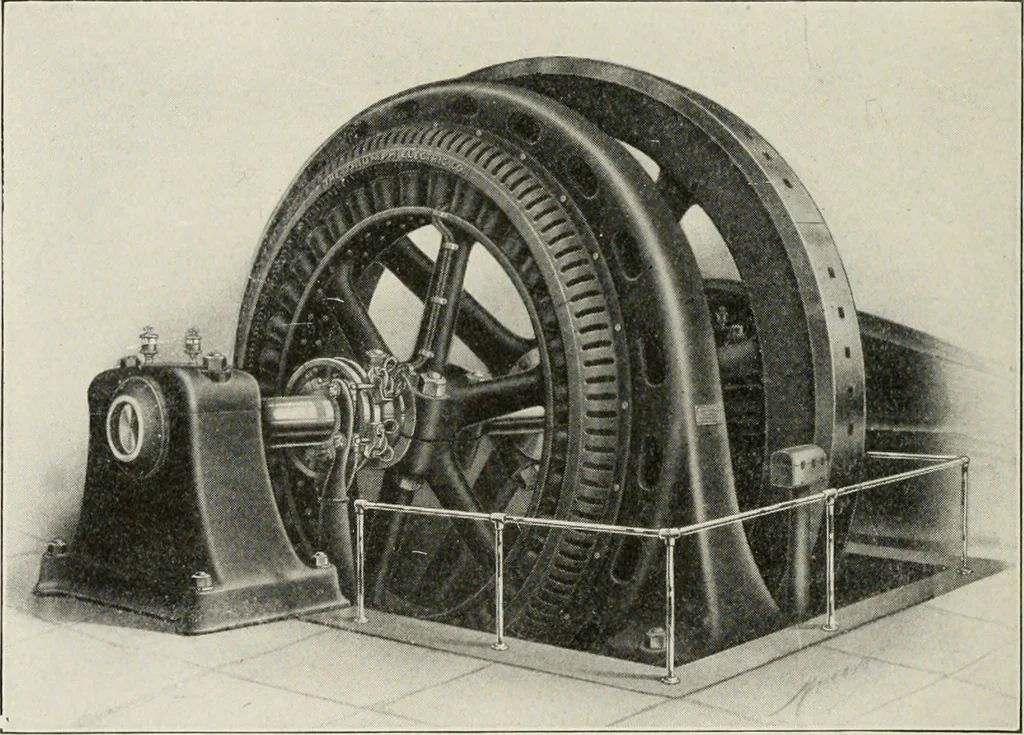

of small engine-type and belted-type machinesare wound with square copper wire, having rounded edges andinsulated with a double layer of cotton. On larger machines ofboth types the field coils consist of copper strip wound on edge, andinsulated with paper and insulating varnish. At one side of… … Fig. 15S. 250 K. V. A., Three-Phase Triumph Alternator belted generators, a ventilating duct passing through the middle ofthe coil. The collector rings for conducting the exciting current tothe field coils are of cast iron, mounted on a separate spider and wellinsulated therefrom. The brush holders…
