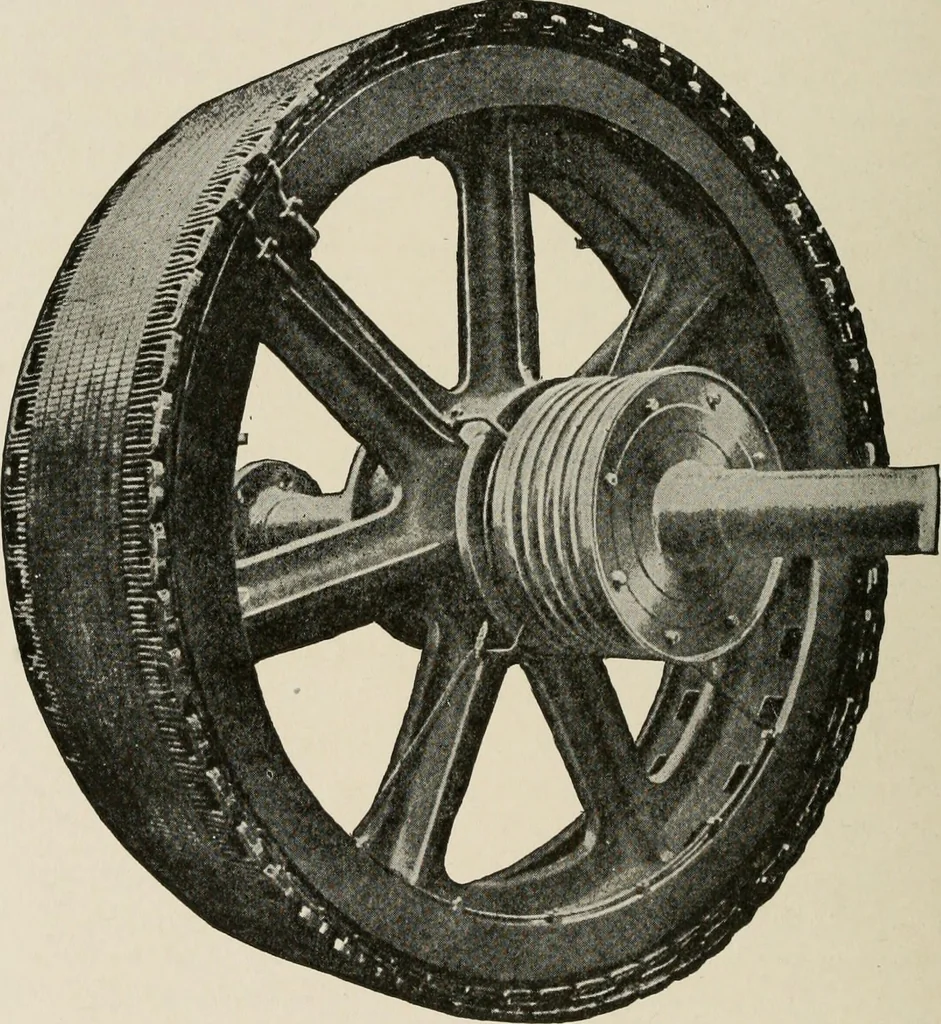

ous conductors of a distributed winding do not cut the fieldflux simultaneously. 151 140 ALTERNATING-CURRENT MACHINERY Concentrated windings have greater inductance than distrib-uted windings for the same total number of conductors, and alsocause a greater armature reaction for a given current than… … Fig. 141. Completed Armature with Strap Winding, Four Slots Per Phase Therefore, an alternator with a concentrated winding has a poorer(higher) regulation than an alternator with a distributed winding;and although a concentrated winding may give a higher electro-motive force at zero load, it may…
