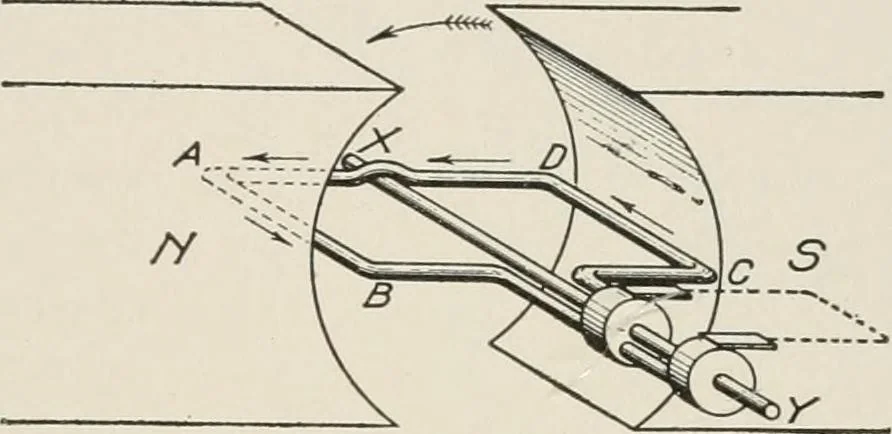

ave an e. m. f. induced in them that will tend to cause a cur-rent flow in the directions indicated by the arrows. The value of thise. m. £. will depend upon the speed or time rate of cutting; and sincethis rate is greatest when the plane of the loop is parallel to the direc-tion of the flux, i.… … Fig. 19. Simple Dynamo Diagram vertical position, the generated e. m. f. gradually decreases becausethe rate of cutting is diminishing, until, at the 90° position, the motionof the loop is in the directionof the lines of force, when thecutting of the flux and thegenerated voltage are bothzero. If…
