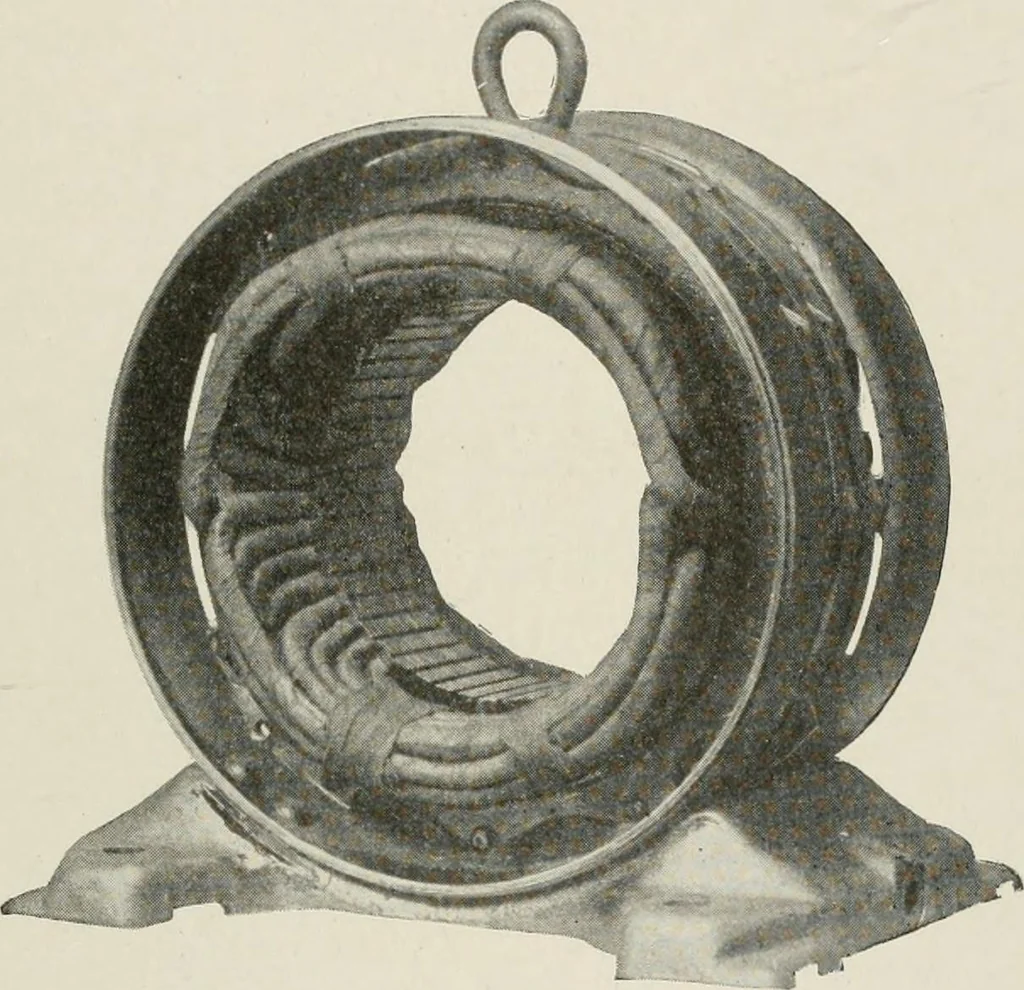

weight, and ease of ventilation. The statorcoils are thoroughly insulated. The secondary, or rotor, Fig. 211,has laminations with spacers for ventilating ducts riveted betweenend plates, and the unit thus formed is keyed to the shaft. The coilsare made of strap copper and are pushed into the slots… … Fig. 210. Stator of Type AR Repulsion Motor located inside the rotor at the commutator end, and consists of asteel sleeve, a centrifugal governor, and a spring. The sleevecarries a short-circuiting coil which consists of a helical phosphor-bronze spring inside of which is a ring of flexible copper…
