Cyclopedia of applied electricity : a general reference work on direct-current generators and motors, storage batteries, electrochemistry, welding, electric wiring, meters, electric lighting, electric railways, power stations, switchboards, power transmission, alternating-current machinery, telegraphy, etc. (1916)
American Technical Society · Chicago : American Technical Society · leaf 444

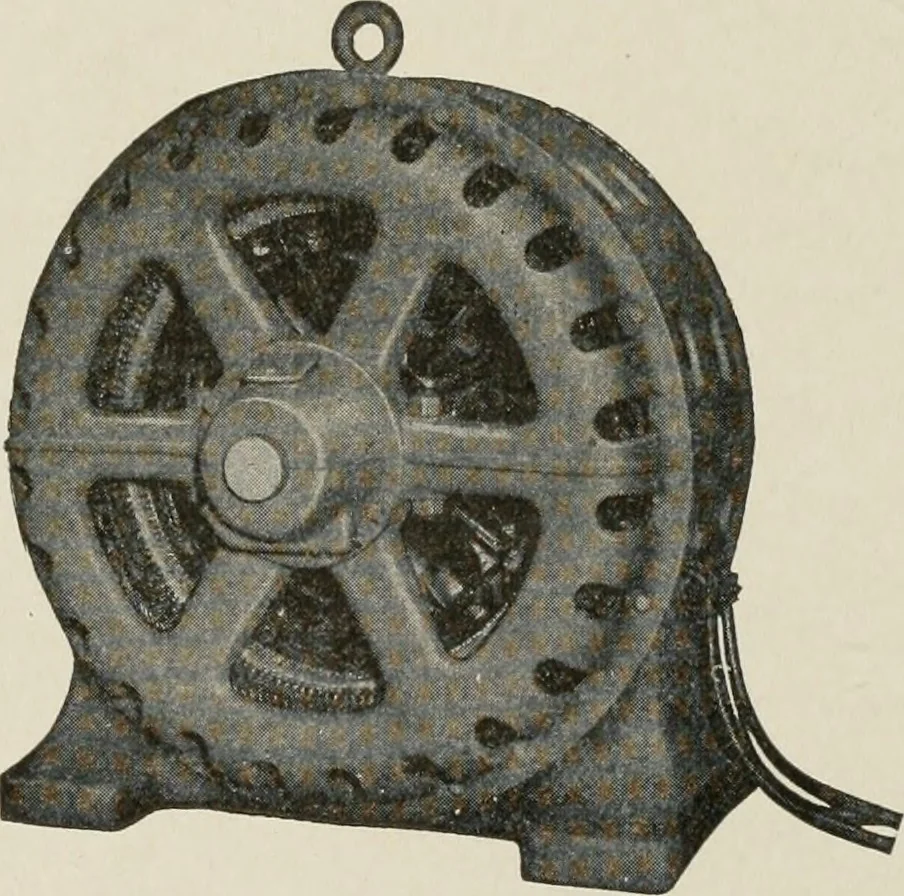

theperiphery of the core. Thesebars project beyond thelaminated core, and theyare screwed and solderedat each end to massive ringsof copper, thus forming ashort-circuited secondarywinding, as shown in Fig.340. This type of secondarymember is called a squirrel-cage rotor. The completemotor is shown… … Fig. 341. Westinghouse Induction Motor Com-pletely Assembled 399 382 ALTERNATING-CURRENT MACHINERY ing and running conditions determine which type to adopt in anygiven case. These types are shown in Figs. 342, 343, and 344.
