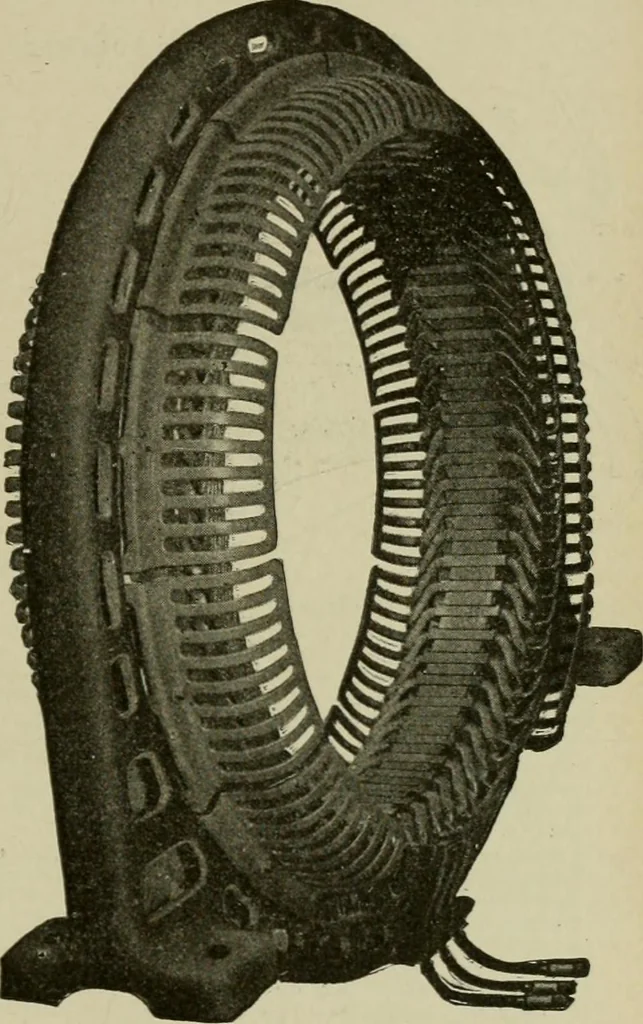

volving field al-ternator. Ans. The construc-tion of such alternat-ors is indicated in thediagram, fig. 1,394.Attached to the shaftis a field core, whichcarries the latter, con-sisting of field coilsfitted on pole pieceswhich are dovetailedto the field core. Thearmature is built intothe frame and… … Fig. 1,395.—Western Electric stationary armature andframe of engine driven alternator. It is of cast ironand surrounds the laminated iron core in which thearmature windings are embedded. Heavy steel clamp-ing fingers hold the core punchings in place and nu-merous ventilating ducts are provided in…
