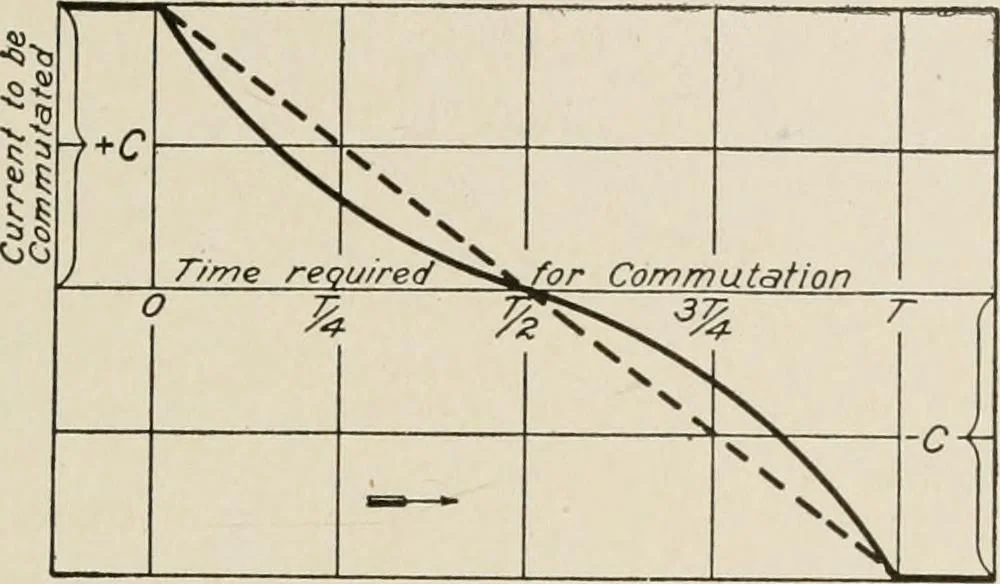

ws the variation ofthe current during this period, ifthe resistance and inductance ofthe armature coils are neglected.It, therefore, remains to consider theeffect of these reactions. Commutation Curves. If the re- 60 PRINCIPLES 51 sistance of the armature coils be not negligible in comparison… … Fig. 62. Commutation Curve when Resistanceof Armature is Not Negligible tact resistance and an armature coil are in series; in the other, onlythe contact resistance; this causes a different current distribution.In other words, the presence of resistance in the coils of the armaturereduces the ratio…
