Cyclopedia of applied electricity : a general reference work on direct-current generators and motors, storage batteries, electrochemistry, welding, electric wiring, meters, electric lighting, electric railways, power stations, switchboards, power transmission, alternating-current machinery, telegraphy, etc. (1916)
American Technical Society · Chicago : American Technical Society · leaf 200

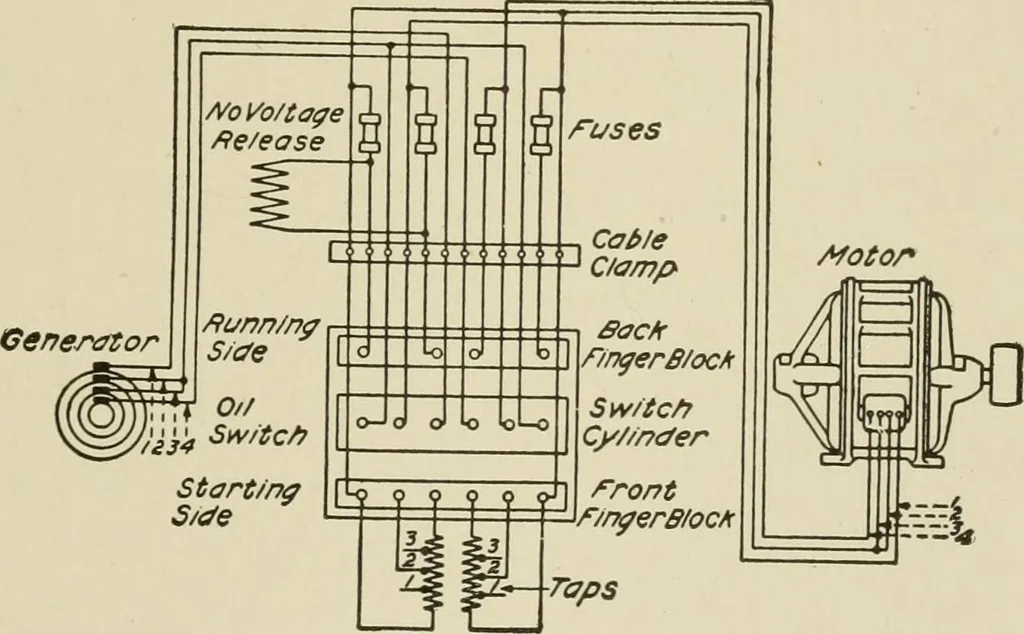

ffiasffA Piiofeo Fig. 50. Wiring Diagram for Two-Phase Starting Compensator for Four-Wire Circuit witli Fuses Courtesy of General Electric Company windings are entirely disconnected and the motor takes its currentdirectly from the lines at full potential. Compensators are usually connected for low… … Fig. 51. Wiring Diagram for Two-Pliase Starting Compensator for Three-Wire CircuitCourtesy of General Electric Company and torque. If the motor will not start its load with these con-nections, the next higher voltage taps should be tried, and so onuntil taps are found which will give the required…
Electrical engineering
Internet Archive · Northeastern University Library · Public Domain Mark 1.0. Free to use for anything.
