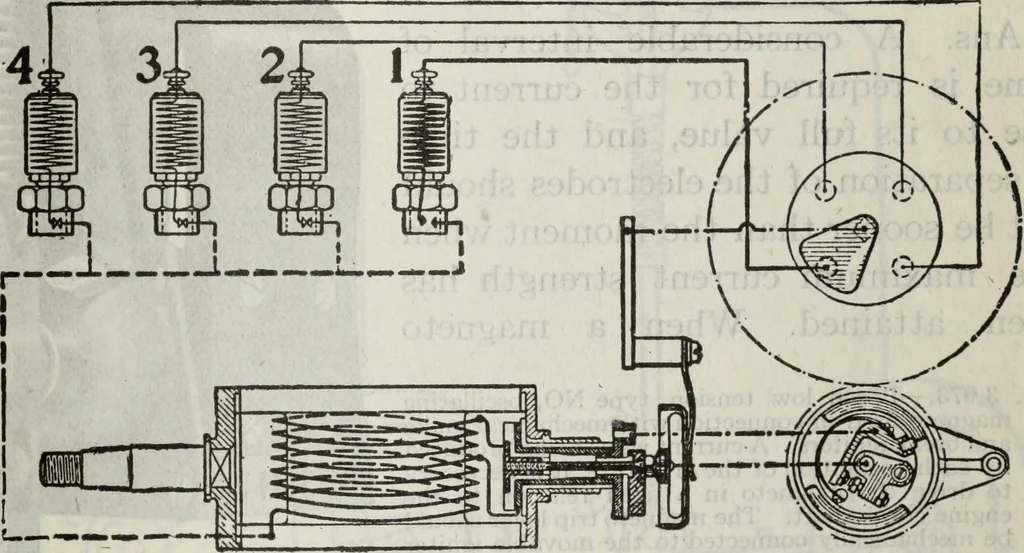

of operations is repeated by the ignitionmechanism of each cylinder in rotation. GAS ENGINE IGNITION 2,763 4, a switch for breaking the circuit, and an additional switchto alternate between the battery and the magneto when bothmeans of furnishing the current are provided, and 5, connectingwires, as… … Fig. 3,972.—Wiring diagram of a low tension system with magnetic spark plugs. A portionof the wiring of the magneto armature is short circuited by the platinum points of theinterrupter, and when the circuit is broken the resulting armature reaction has the effectof raising the armature voltage…
