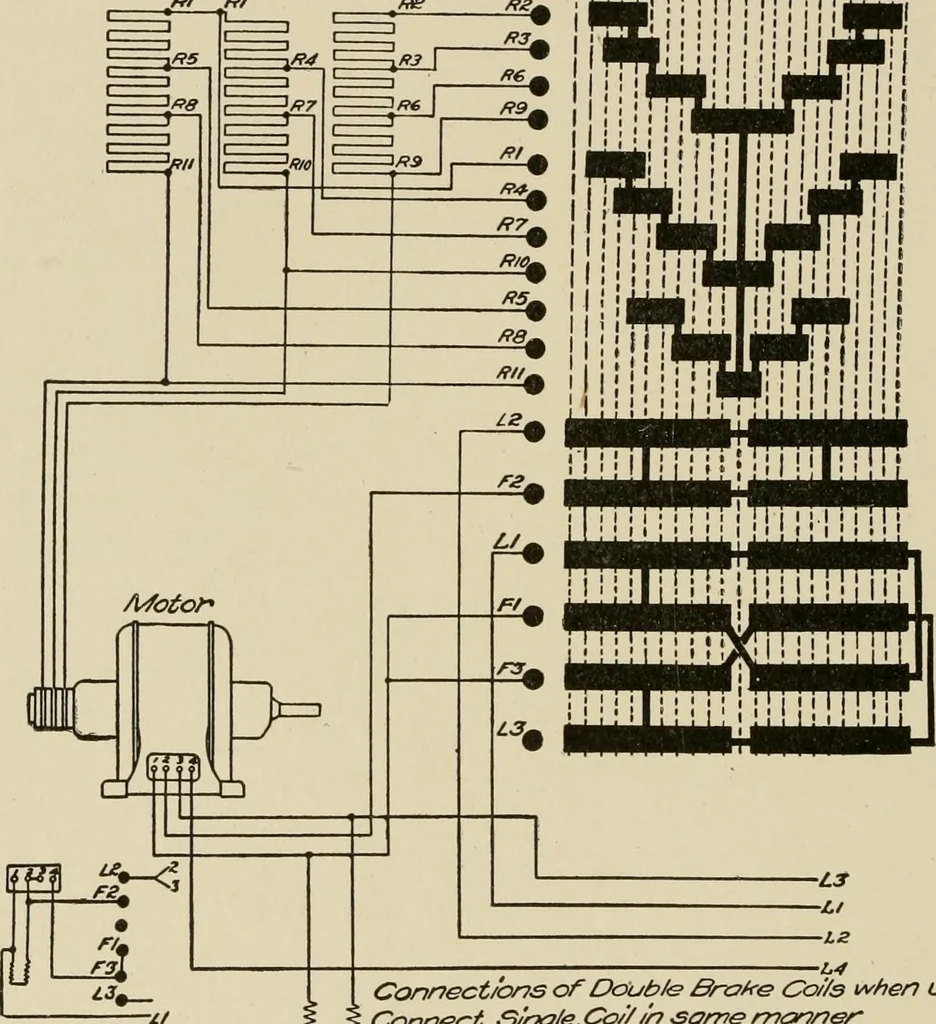

uslydescribed. However, the ends of the Y-connected rotor windingsare brought out to three collector rings mounted on and insulated 179 58 MANAGEMENT OF DYNAMO-ELECTRIC MACHINERY from the shaft. Brushes bear on these rings and connect to someform of Y-connected resistance. Control. In most sizes of… … Connect/ons forThree Mr^ S(/ste/n Connect/ons of Ddub/s Brafre Co//e lA/hen usedConnect S/ng/e .Oo// /n same manner Fig. 54. Wiring Diagram for Control Mechanism of Slip-Ring Induction Motor on the final step. The current to the stator or primary of themotor may also pass through the controller.…
