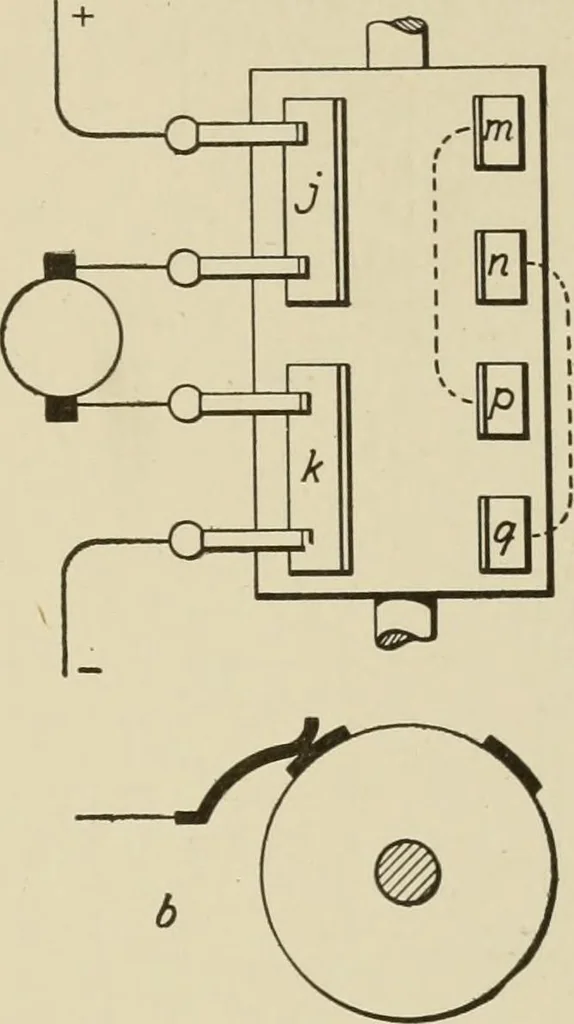

Fig. 37. Reversing Switches,a—Knife Switch; &—Cylinder Switch. 45 36 DIRECT-CURRENT MOTORS will flow downwards through the motor armature; and with theblocks m, u, p, and q in contact, the current will flow upwards. Itis obvious that this arrangement may be extended to execute muchmore…
