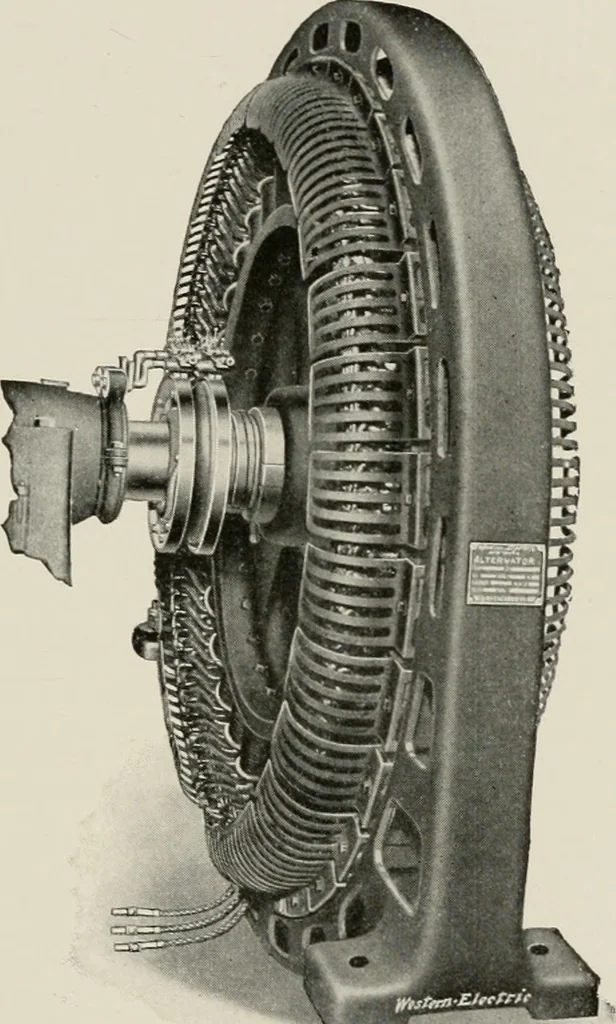

Fig. 110. Diagram Showing Method of SeparateExcitation 122 … ENGINE-TYPE ALTERNATOR SHOWING COLLECTOR RINGS AND BRUSHHOLDER RIGGING Courtesy of Westtrn Electric Company ALTERNATING-CURRENT MACHINERY 111 The field of the alternator is excited by a set of coils on thepole pieces. These coils are represented by F; and current is sup-plied to these coils from a…
