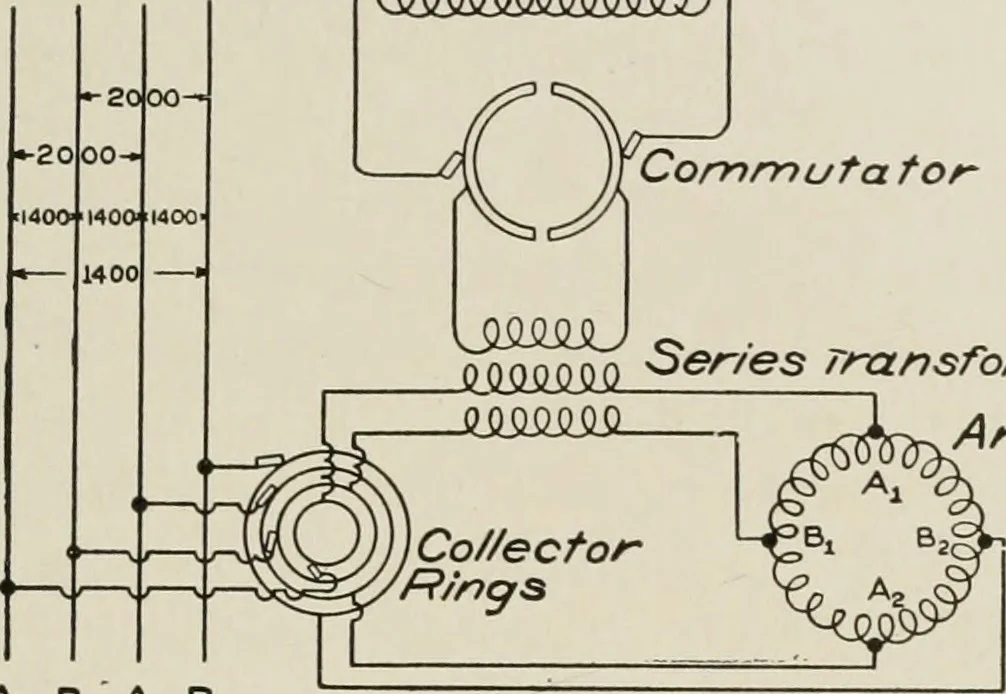

Fig. 112. Diagram Showing CompositeExcitation with Transformer 124 ALTERNATING-CURRENT MACHINERY 113 Fig. 112 shows an alternator A with two sets of field coils Fand C as before. One armature terminal is connected to a collect- Aujr/7/ary Fie/d onnmutafor … Senes Tfnnsformer Armature Aj Bj A2 B Fig. 113. Two-Phase Alternator Diagram with Composite FieldExcitation with Balanced Receiving Circuits ing ring; and the other armature terminal connects to the primaryof a transformer T, and thence to the other collecting ring. Theterminals of the secondary…
