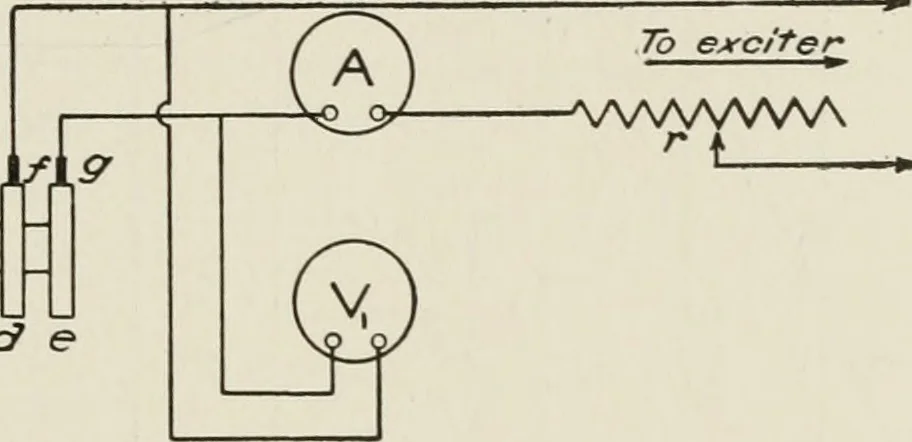

currentmay be zero, in which case the curve is called the no-load saturationcurve, or sometimes the open-circuit characteristic curve. Observa-tions for a saturation curve may be taken with full-load currentin the armature; but this is rarely done, except in alternators ofcomparatively small… … cf e (wwnr\ RofentialTra nsformer. rig. 189. Dirgram of Con ections for Saturation Curve Te?t ofAlternator The diagram of connections for determining tne no-load satura-tion curve is shown in Fig. 189. The alternator is represented asa three-phase machine of the revolving-field type (armature…
