Principles and practice of electrical engineering (1914)
Gray, Alexander, 1882-1921 · New York [etc.] McGraw-Hill Book Company, inc. · leaf 394

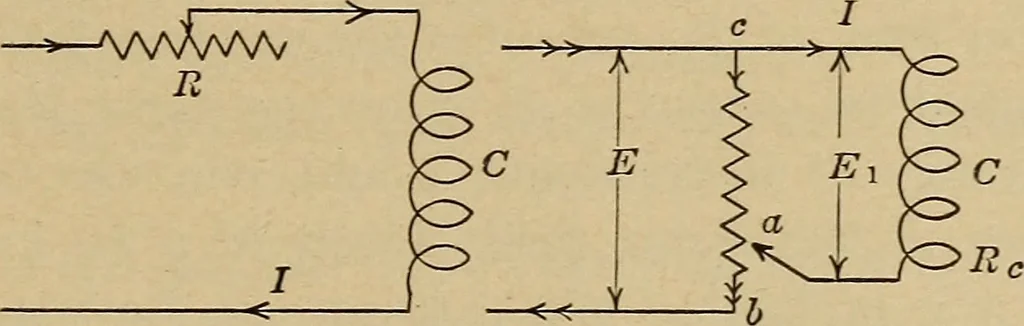

eter of wirein inches Maximum current in the wire inamperes Rubber Otherinsulation insulation 14 0.064 12 16 12 0.081 17 23 10 0.102 24 32 8 0.12.8 33 46 6 0.162 46 65 5 0.182 54 77 4 0.204 65 92 3 0.229 76 110 2 0.258 90 131 1 0.289 107 156 0 0.325 127 185 404. Control of the Current in a… … Figs. Fig. 438. Fig. 439. 438 and 439.—Methods of controlling the current in a circuit. If the resistance of the coil C is large compared with that ofthe resistance R, then the current variation wTill not be verylarge. Under such circumstances, the potentiometer connectionshown in Fig. 439 is to be…
Electrical engineering
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
