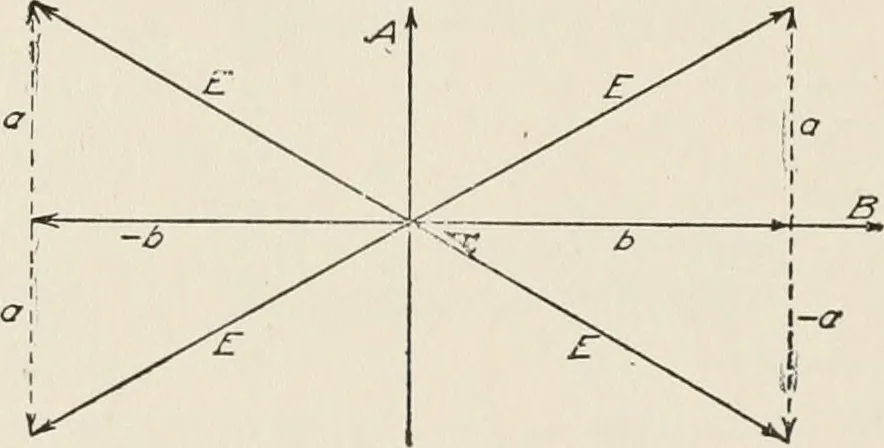

tesone unit of the three-phase system, and these three units may beeither Y-connected or A-connected to three-wire, three-phase servicemains. The general two-phase-three-phase transformer is greatly simplified if we choose tohave one of the three-phaseelectromotive forces in phasewith one of the… … Fis. 229. Vector Diagram of E.M.F. Relationsfor E in any Quadrant 272 ALTERNATING-CURRENT MACHINERY 259 Scott Transformer. The two-phase, three-phase transformer per-mits of still further simplification if the A-connection of the three-phase !B i.2 1 Fig. 230. Vector Diagram of E.M.F. Relations in…
