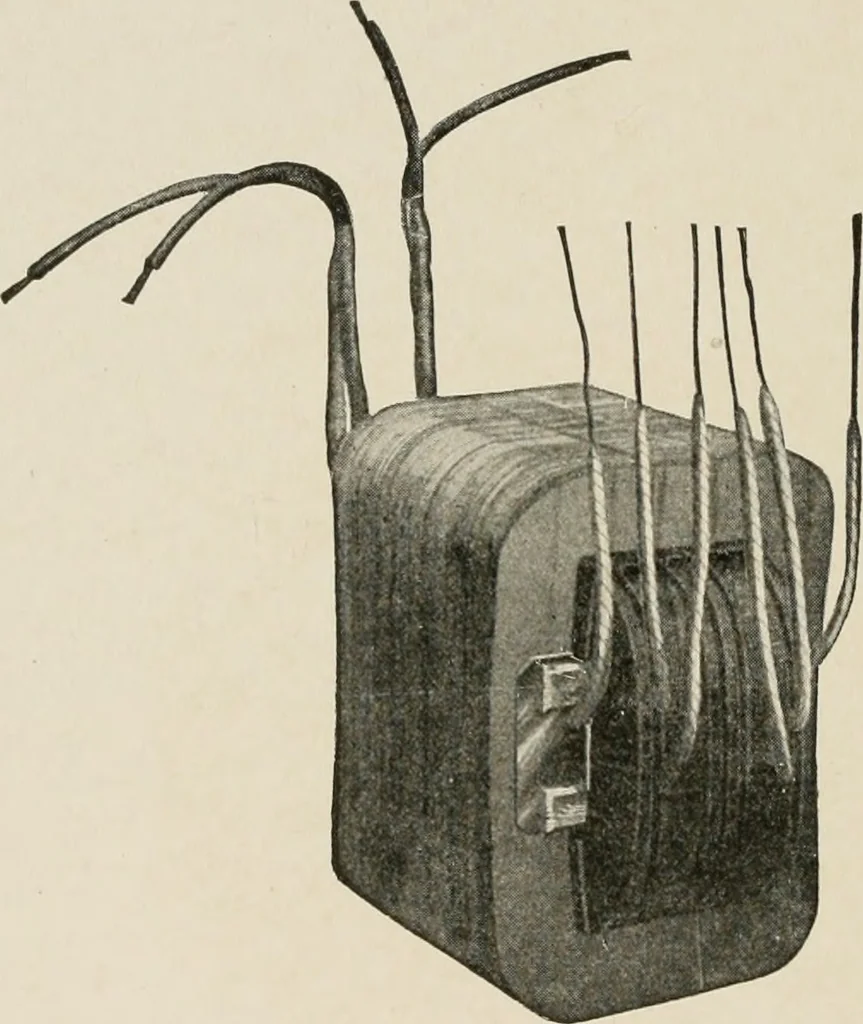

to 268 give a general view and structural details ofa 15-kw. shell-type transformer manufactured by the Fort WayneElectric Works. The shape of the core stampings is shown in Fig.265, which is a section through the transformer. The secondarywinding, as seen in the figure, is subdivided into four… … Fig. 267. Assembled Core and Coils for Fort WayneTransformer secondary turns, one-half primary turns, and one-fourth secondaryturns. This intermixing the various sections reduces greatly mag-netic leakage, and thus improves regulation. Fig. 266 shows a group of pancake coils insulated and…
