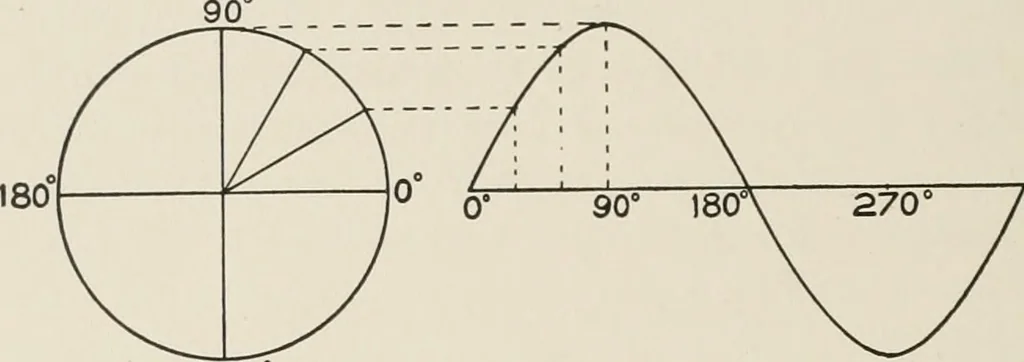

18 ALTERNATING-CURRENT MACHINERY not properly be represented by a line in a clock diagram, becausethe projection of the rotating line is not at each instant proportionalto the electromotive force (or current). The approximate represen- … 360 270° Fig. 21. Method of Plotting Sine E. M. F. Curve tation, by lines in a clock diagram, of non-harmonic electromotiveforces (or currents)—such, for example, as those represented by thecurves in Figs. 13, 14, and 16, depends upon the finding of harmonicelectromotive forces (or currents) which…
