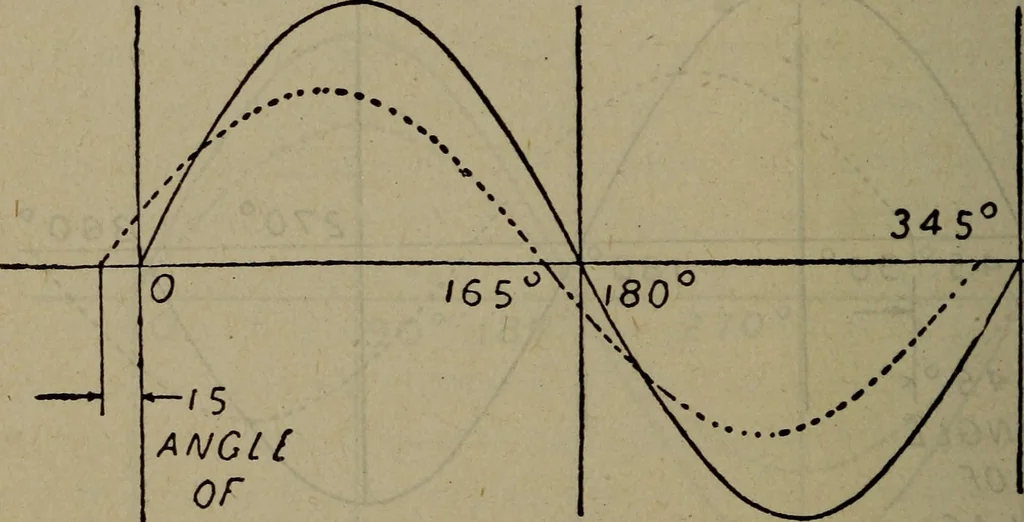

rs, the current wave may beahead of, or lead the voltage wave. This is caused by anaction directly the opposite of inductance, called capacity,and is illustrated in Fig. 500, where a current lead of 15electrical degrees is shown, and in which the angle of leadis 15°. In the alternating… … 360 —/5ANGU or lCAD Fig. 500 showing a current lead of 15 degrees and because some interpolar space must be left to preventexcessive leakage from pole to pole. Only 50% of the armature bore is wound, for otherwisethe coils would be so wide that they would extend over intothe field of a wrong pole…
