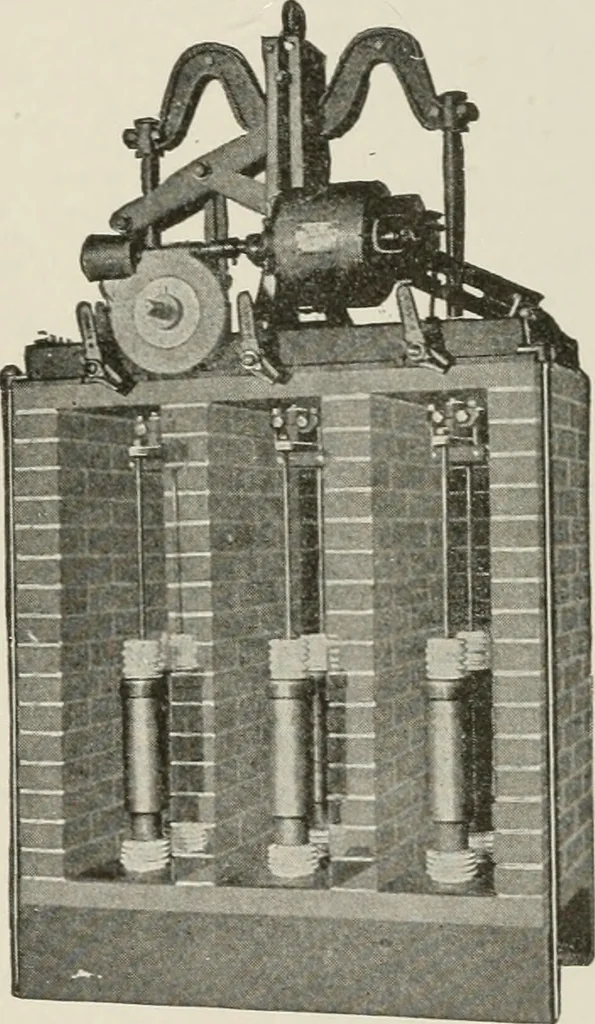

ingle-pole switches operated by an electricmotor, which is controlled from the switchboard. Each single-pole switch in Fig. 385 is mounted in a separate brick compart-ment. The oil is contained in long metal cylinders in order to reducethe amount of oil to a minimum. The long brass connecting… … Fig. 385. General Electric Three-Pole OilSwitch Operated by Electric Motor 461 444 ALTERNATING-CURRENT MACHINERY out through porcelain bushings in the bottoms of the cylinders, andthese lower rods are connected together in each compartment, thusmaking a double-break single-pole switch. The metal…
