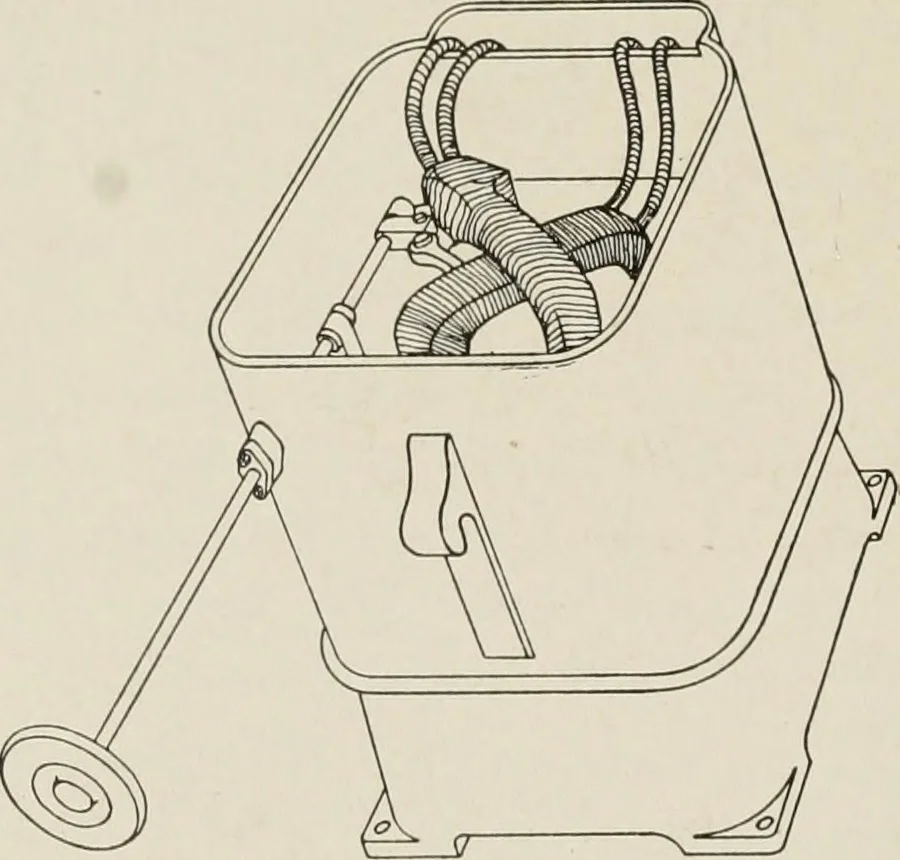

econd-ary coil, and in the positionindicated by dotted lines, thecore carries the magnetic fluxdue to the primary coil in theother direction through thesecondary coil. Therefore,when the core is moved slowlyfrom position 1 to position 2,in the direction indicated bythe arrows, the voltage in-duced… … Fis 391. Magnetic Voltage Regulator in Casewith Cover Removed 464 ALTERNATING-CURRENT MACHINERY 447 secondary coil has its greatest value of say, 100 volts which, if thecoils are properly connected, is added to the bus-bar voltage E, givinga feeder voltage of E-{-100. When the core is midway…
