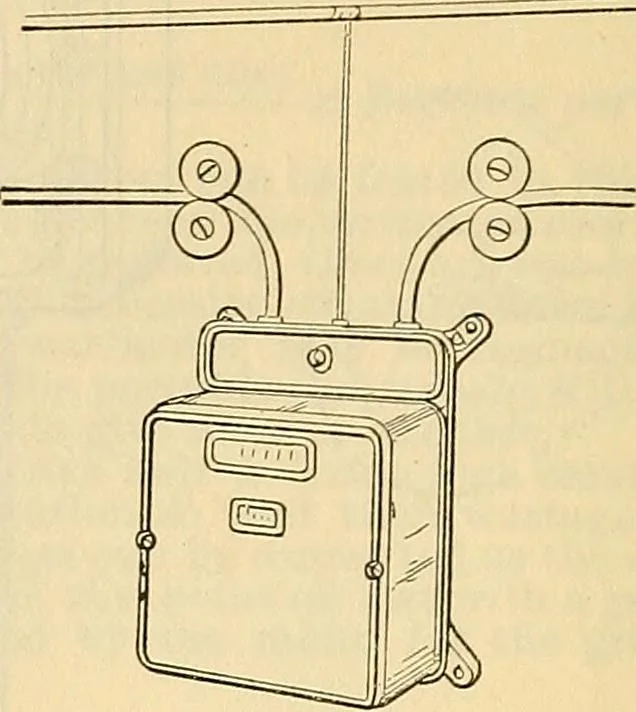

he first right-handpointer on the dial indicates 1,000 Watt hours, or 1 K. W. H. for one com-plete revolution of the pointer, and each unit indicated by this pointer rep-resents 100 Watt hours. The other pointers, taken in order from right toleft, record successively 10 K. W. H., 100 K. W. H.,… … Fig. 21. Connections for Single-Phase Circuits ; Current not exceeding 100Amperes, Potential not exceeding 500 Volts. The illustration above shows the method of connecting a meter to a single- SKSSKr™*not exceedin§ io°~ and at a ^
