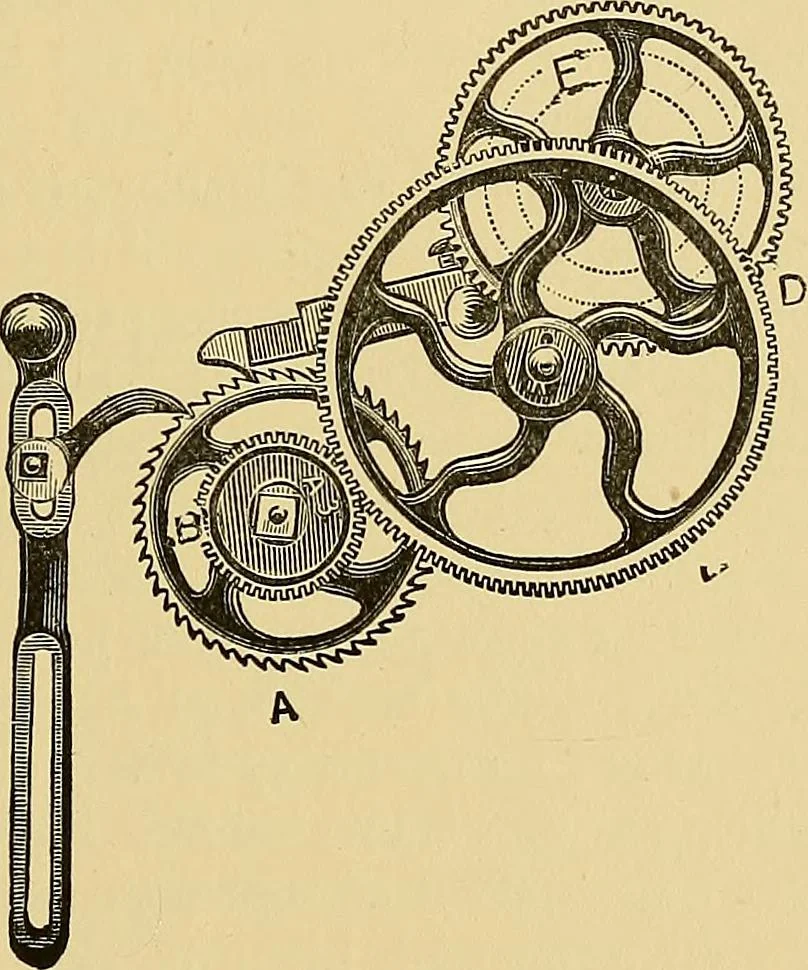

eel 120 X 15, rack wheel 50 teeth, give a dividend of 507. Withan allowance for shrinkage, the calculation would be:—Multiply rackwheel 50, carrier wheel 120, and beam wheel 75, all together =45,000; and divide by pinion wheel 15 x 60 (number of 5 inches incircumference of taking-up roller) = 900… … Fig. 57.—Taking-up Motion. The train of wheels is not always the same in every class of loom,but the dividend can always be obtained by multiplying all thedriven wheels together, and dividing by the drivers and circumferenceof the roller. Taking-up Motion.—The object of a taking-up motion in…
