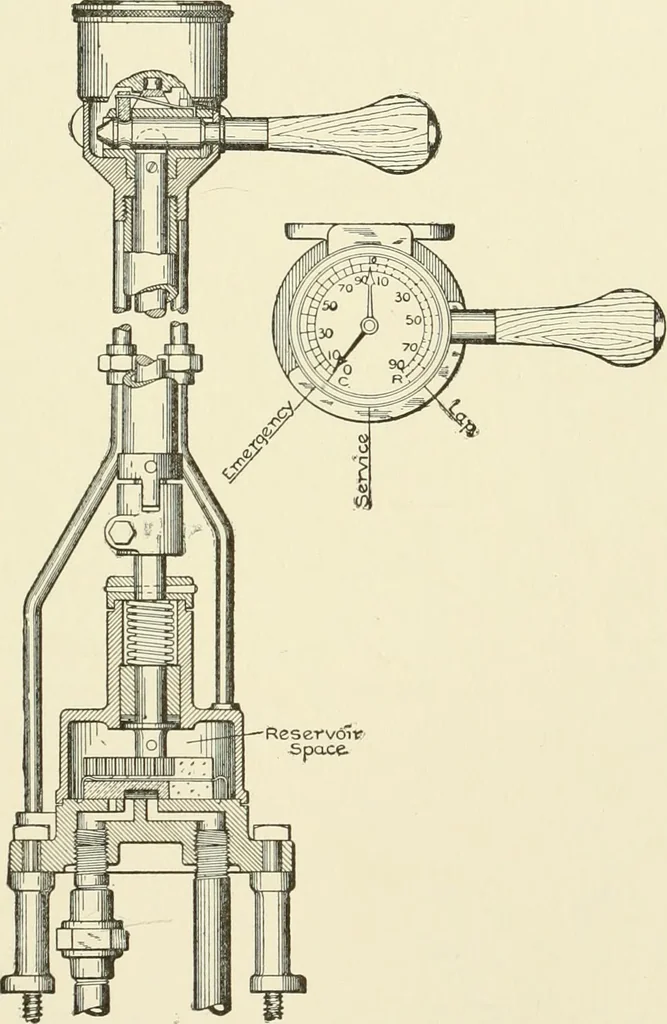

the cylinder and reservoir pres-sures, but the operation is the same as in the case of the one justdescribed. 196 ELECTRIC RAILWAYS 101 The valve just described is sometimes used in a modified form,as shewn in Fig. 96. Here the operating handle and valve parts areseparate, the valve parts being… … Fig. 96. Front View and Section of Another Form of Operating Valve Piping. Referring to Fig. 85, the sizes of the various pipes areas follows: The train pipe connecting the brake cylinder with the operatingvalve should be a standard |-inch pipe. If more than one trailer isused, a f-inch pipe should…
