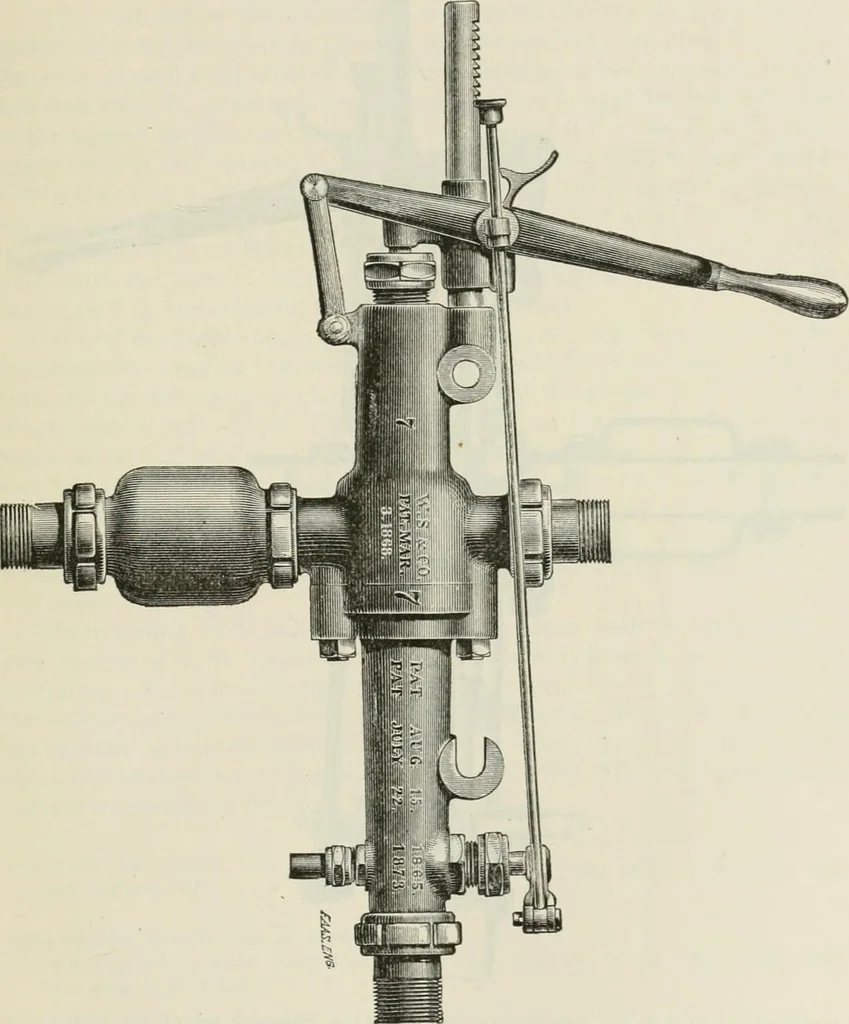

water and steam re-spectively. In a lifting attachment, it is desirable that the steam should ex-pand on entering the combining tube, and this is generally accomplished- a? 426.] STEAM-GENERA TING APPARA TUS. 209 in the present machine, by enlarging the steam-supply tube from the pointof admission… … lifting attachment, and is so arranged that the water supply is self-adjusting,no waste overflow taking place except at the time of starting the instrument.By reference to Fig. 654^, it will be seen that the case consists of two parts,united by the bolts E E. The upper portion contains inlets for…
