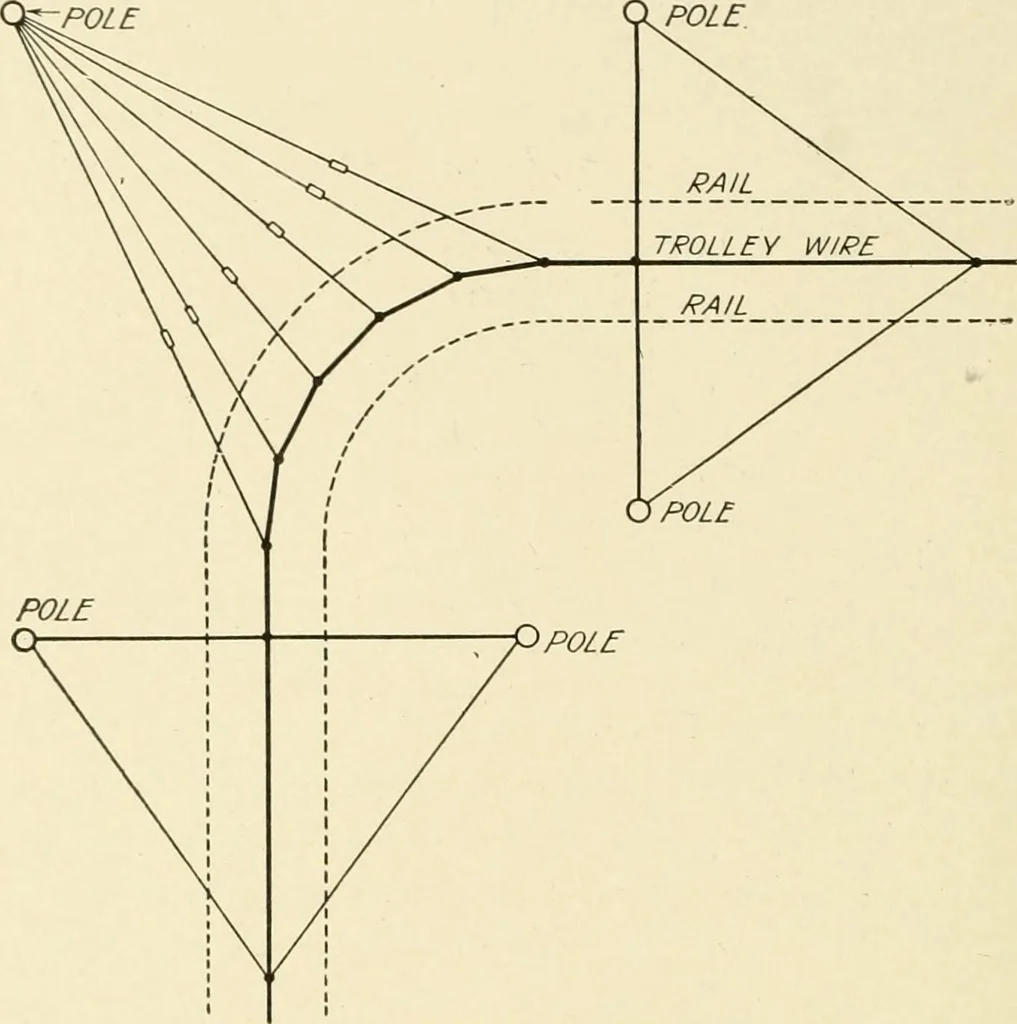

Fig. 191. Span Con.struction for Single Trolley Wire attached. In the case shown in Fig. 192, the tangent wire is sup-ported at each end of the curve by a pair of poles and a span wire.These poles also serve to anchor the trolley wire at the curve, theanchor wires being shown. On the curve there… … Fig. 192. Line Construction on a Curve Using Five Poles POLE
