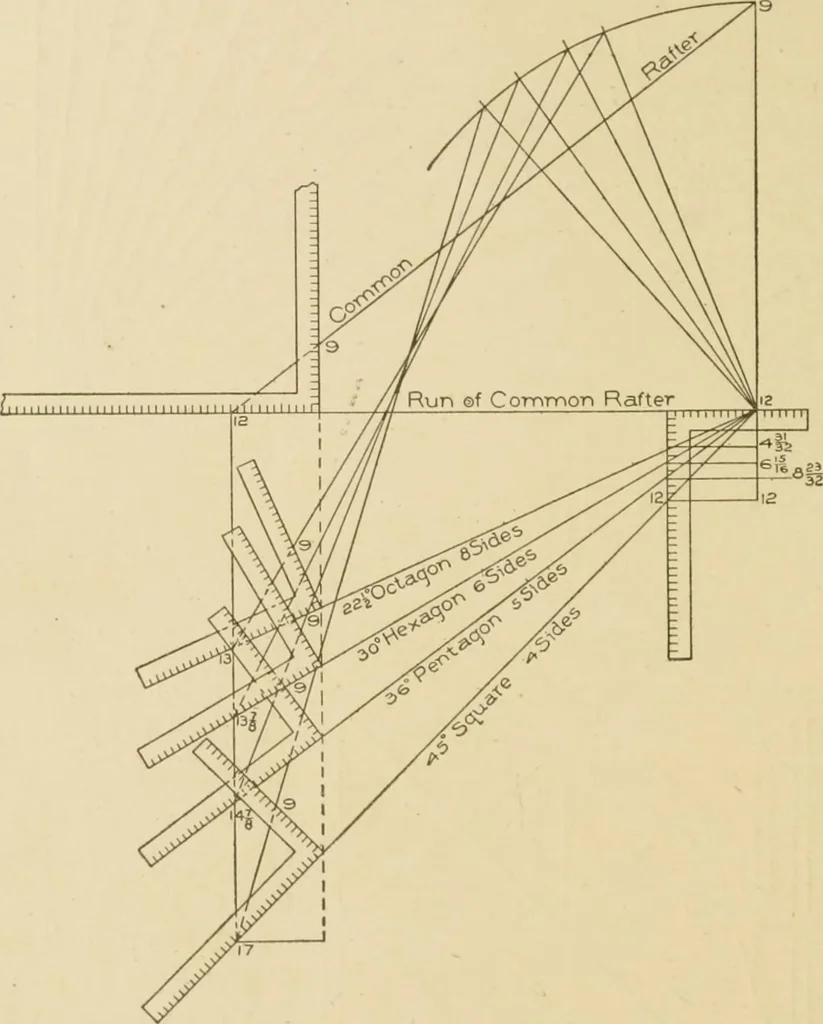

Fig. 11. Square Applied to Determine RelativeLength of Run for Rafter and Hip. 347 THE step:l square fluoiis. There may, liowever, be a certain way of presenting the sub-ject that will carry with it almost the weight assigned to a new theory,making what is already simple still more simple. The… … Pig. 13. Use of Square to Determine Length of Run for Rafters on Comers Other tliau 4.5°. for the carpenter. With its use the lengths and bevels of every pieceof timber that goes into the construction of the most intricate designof roof, can easily be obtained, and that with but very little…
