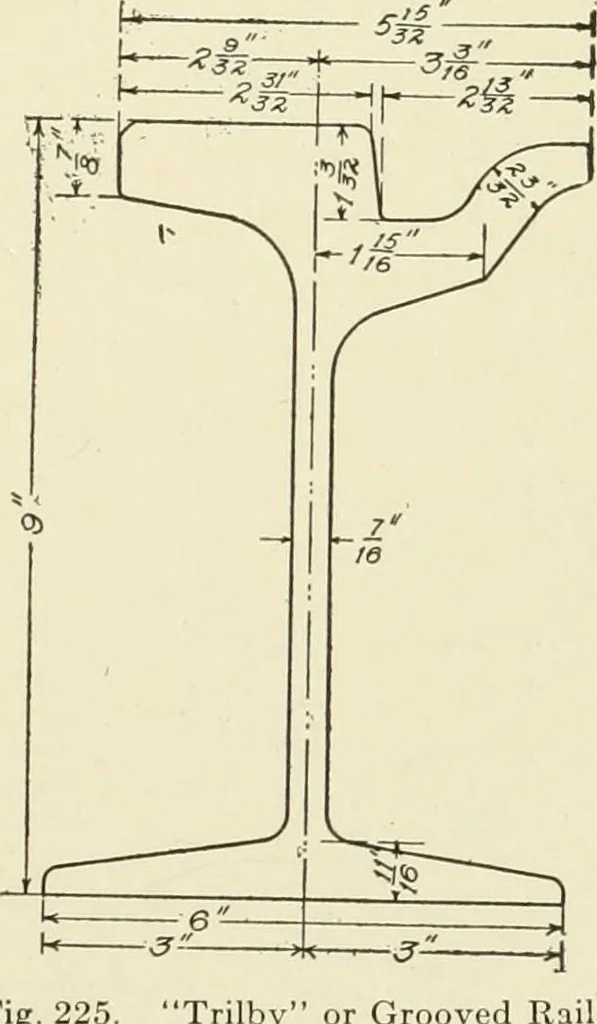

caseof the regular European narrow-groovedrail. A narrow-grooved rail in whichthe grooves correspond closely to theshape of the car-wheel flanges is sureto make trouble in localities where thereis snow and ice, as the grooves becomepacked and derail the cars. A numberof varieties of this type of… … Fig, 225. Trilby or Grooved Rai 333 236 ELECTRIC RAILWAYS Guard Rail. On T-rail curves it is customary to use a guardrail which bears against the inside of the wheel flange and assistsin holding the wheel to the rail. The guard rail is of a special formas shown in the mate in Fig. 236, p. 246. It…
