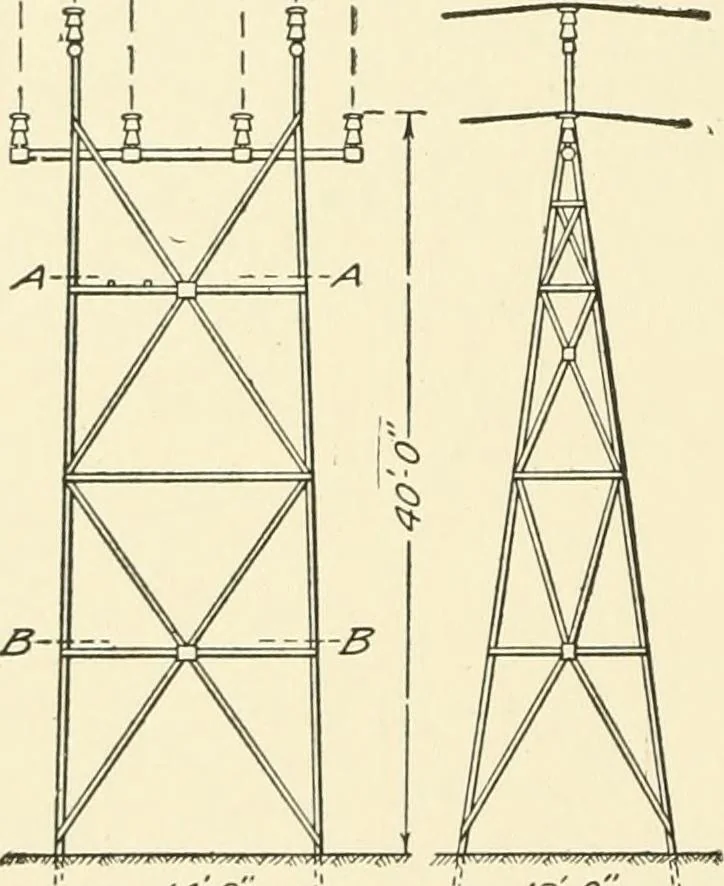

the pole. Head guying, that is, guying in the direction of the line, is usedwhen the line is changing level and for end poles. The guys areattached near the top of one pole and run to the bottom of the polejust above. Fig. 38 shows several methods of reinforcing polelines. Special methods are… … SHCTIONyAA |- 6^-0^ 6-0^6-Cf-^ III III SECT/OtiBB -/4-0 >• :.H .,1 ..-i:, cii i--^- Fig. 39. Plan and Elevation of Steel Tower
