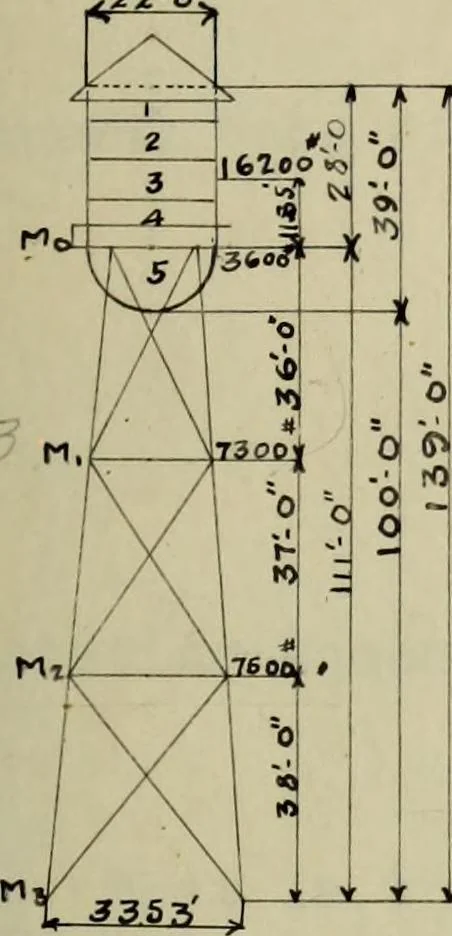

* 39.V - DESIGN, A. - Four-post Hemispherical Bottom Tank (Posts Battered.) Capacity 100,000 gallons. Height 111 feet to balcony.1. Stresses. (a) Center of Gravity on Tank. ,22 o. … To determine the center of gravity on tank,take moments about the balcony line. Roof 9.95x13.25 = 131.8x29.63 = 3910 Shell 26.31x22.0= 580.0x13.16 = 7620 Bott.0.7854 x222 11530 190.0x0.42x11= 880 rwTotal area = 901.8 Moment=10650# (b) Wind Loads. Distance of center of gravityabove balcony line a…
