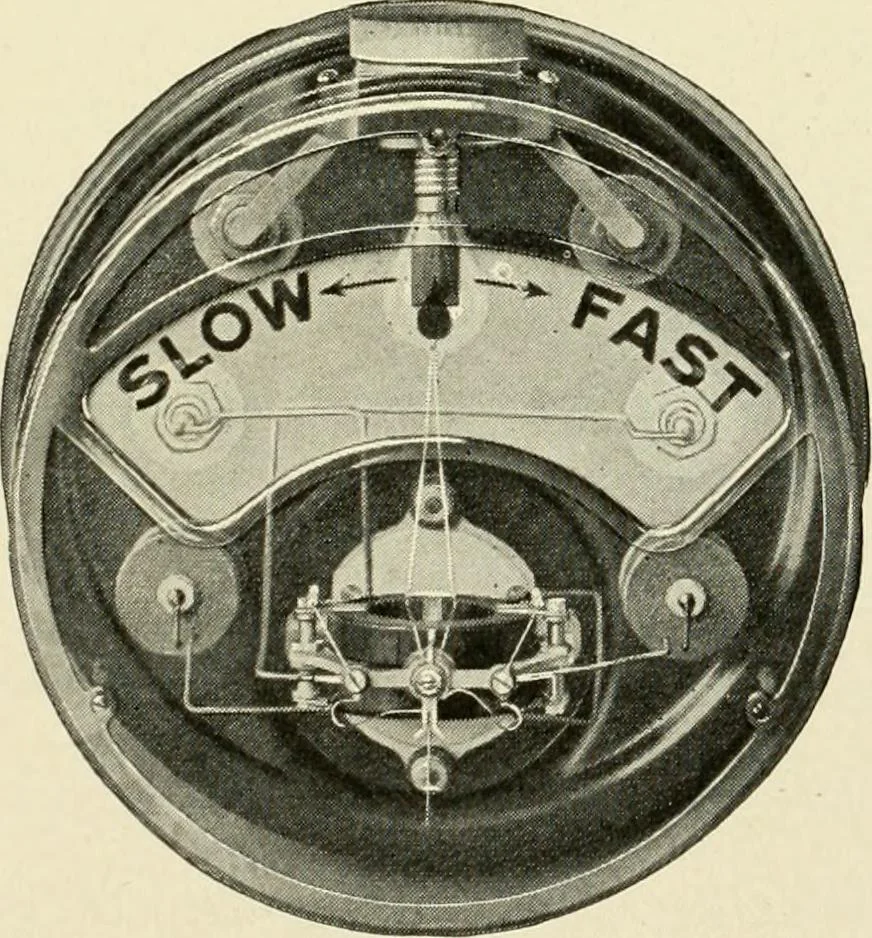

the samephase relation. Also, thespeed at which the pointerrevolves is a measure of thedifference in frequency of thetwo machines. The Weston synchroscopeis built on the dynamometerprinciple. The pointer is in-side the case and moves backof a semi-transparent glassscale. A lamp is mountedback of… … Fig. 54. Weston Synchroscope, Showing InternalConstruction 181 84 SWITCHBOARDS connected to the starting machine through a condenser. The fixedcoil is connected to the bus or to the running machine. A springopposes the movement of the rotating coil. This coil tries to placeitself parallel to the…
