International Library of Technology · Scranton, International Textbook Co. · leaf 44

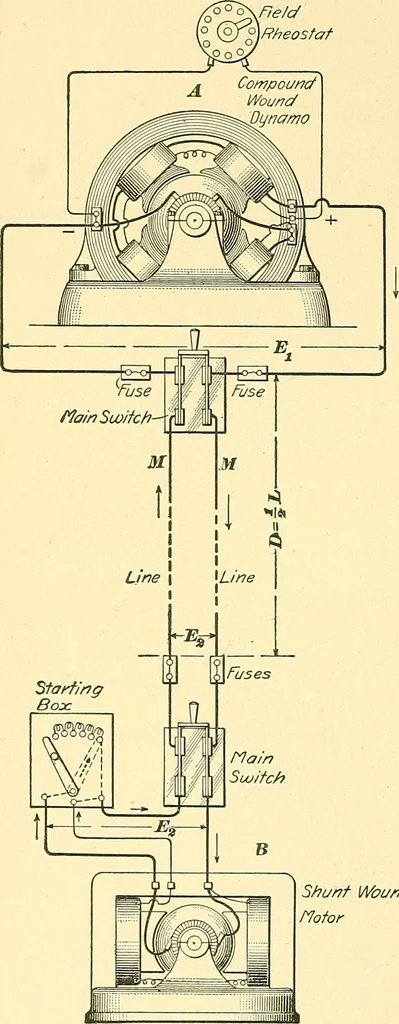

run-ning printing presses,elevators, etc., com-pound-wound motorsare used, but such mo-tors are few in num-ber compared with theothers. 35. Simple Power-Transmission System. About the simplest pos-sible system of electric-power transmission isthat shown in Fig. 11.Here we have a com-pound-wound… … Motor § 14 ELECTRIC TRANSMISSION. 31 is adjusted so that the pressure at the terminals of thedynamo rises slightly as the current increases, due to theincrease of the load on the motor. This slight rise in volt-age is to make up for the loss in pressure in the line, aswill be explained later. The…
Electrical engineering
