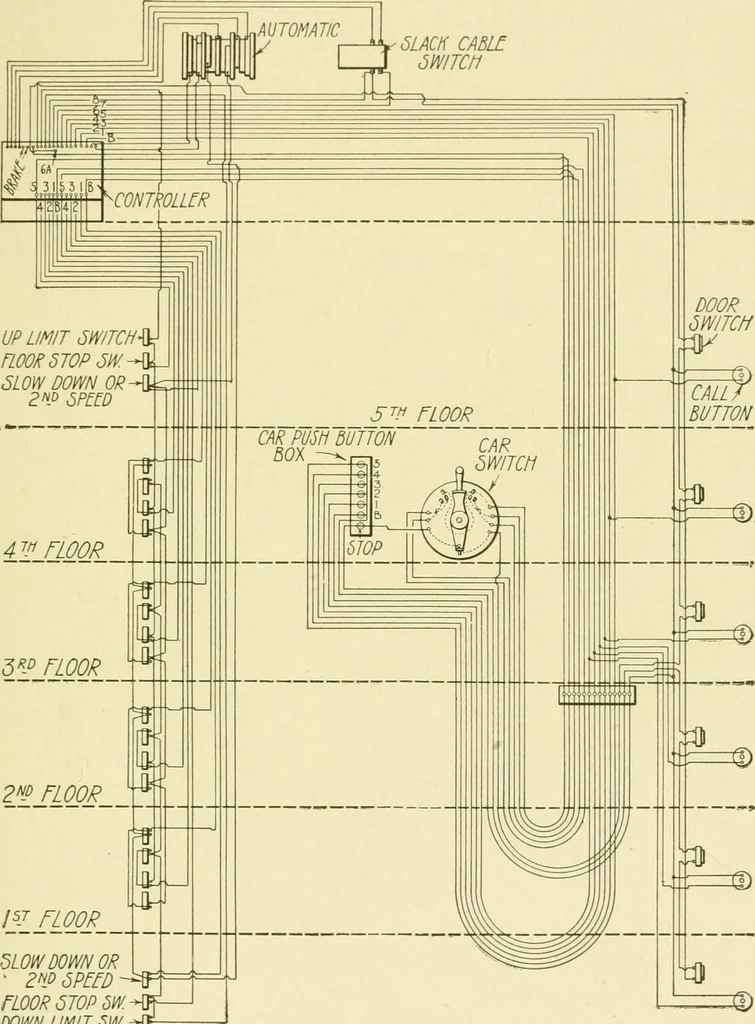

ill cause the insulatedsegment I to move to the left. It will then pass under the brush3, and after its passage the brush 3 will bear on the down segmentR, but the car will continue to move upwards, as the up switcheswere closed through brush 4- When brush 4 bears on the segment7, it, of necessity,… … moRSJOPm.^ DOWN LIMIT 5W. ^ BASEMENT nOOR Fig. 143. Hatch Wiring Diagram of Six-Floor Combination Two-Speed Car Switch and Push-Button Control Elevator Courtesy of Kaestner and Ilecht Company drum or to a cable sheave by sprocket wheels and a chain thatwhen r, brush is on the segment /, the car is…
