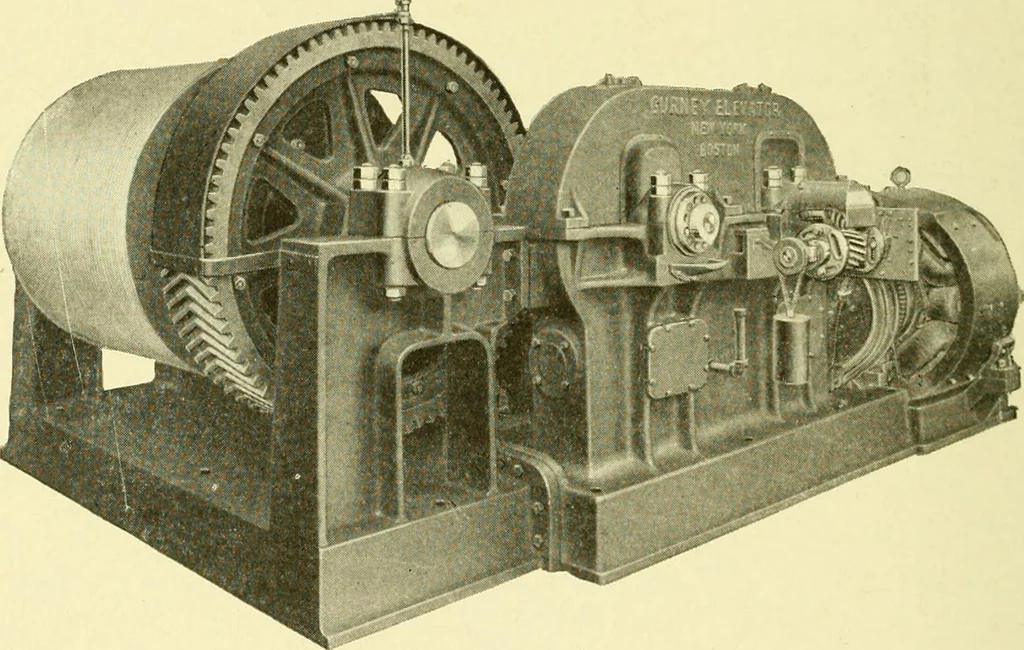

f undue speed, toclose a circuit to the solenoid, and at the same time to open themain circuit and thereby stop the engine. Herringbone Spur=Gear Type. The latest type of electricelevator is what is called the herringbone spur-gear machine,Fig. 169. It consists of the usual bed plate with gear… … Fig. lf)9. T.indera-Uear Elevator with Herringbone Reducion Gearing Cnurtesu of Gurnei/ EJeviiior Compain/ pinion converge from the center of its face outward at an angleof about 60 degrees. Fig. 170; hence the name herringbone. There is nothing new about this type of s})ur gear, as it hasbeen in…
