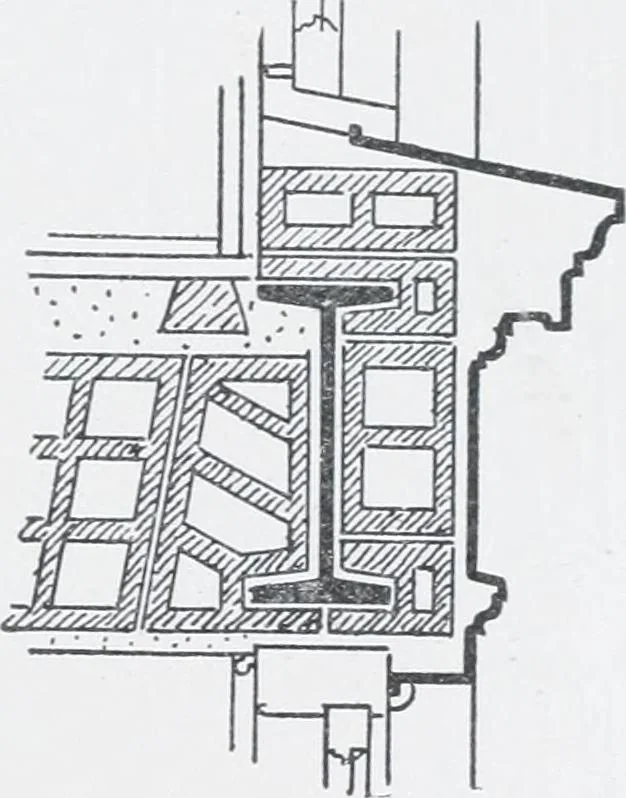

iefdanger being a tendency to shear the connections or twist and distortthe frame. Sometimes the ordinary framing of the floors and columnswill be sufficient, and in other cases special provision must be made.This is done by diagonal ties where the construction will allow, asshown in Fig. 227. When… … Fig. 226. Spandrel Beam. 191 182 BUILDING SUPERINTENDENCE TYPES OF WIND BRACIMG Oii^m^Ti of onfi CoAjrnn 3i^ Inspection. Steel and iron members are inspected in the mill,the shop, and on the job. Mill inspection is to determine the quality of the steel, while shopinspection relates to…
